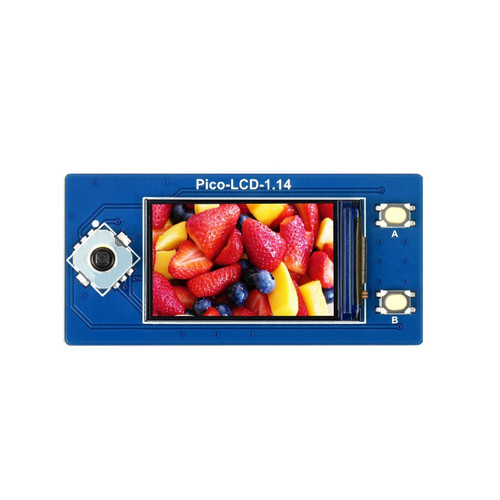

1.14inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 240x135, SPI
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 1808 |
Waveshare 19340 - 1.14inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 240×135 Pixels, SPI Interface
Raspberry Pi Pico is NOT included.
Features
- 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 1x joystick and 2x user buttons for easy interacting
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
- Onboard female pin header for direct attaching to Raspberry Pi Pico
Specifications
| OPERATING VOLTAGE | 2.6 ~ 5.5V |
| COMMUNICATION INTERFACE | 4-wire SPI |
| DISPLAY PANEL | IPS |
| DRIVER | ST7789 |
| RESOLUTION | 240×135 pixels |
| DISPLAY SIZE | 24.91 × 14.86mm |
| PIXEL SIZE | 0.1101 × 0.1035mm |
| DIMENSIONS | 52.00 × 25.00mm |
Pinout Definition
Outline Dimensions
