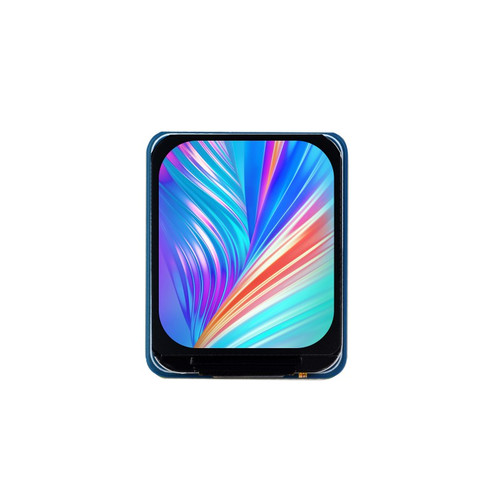

1.5inch LCD Display Module, IPS, 240×280, SPI, 262K colors
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 639-1 |
Waveshare 26118 - 1.5inch LCD Display Module, IPS Panel, Rounded Corners, 240×280 Resolution, SPI Interface, 262K Colors
Features
- 240×280 resolution, 262K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)
Specifications
| Operating voltage | 3.3V / 5V | Resolution | 240 × 280 pixels |
|---|---|---|---|
| Communication Interface | 4-wire SPI | Display size | 24.77×28.90mm |
| Display Panel | IPS | Pixel pitch | 0.1032×0.1032mm |
| Driver | NV3030B | Dimensions | 28.5×35.0mm |
Controlled Via SPI Bus
Includes
- 1.5inch LCD Module x1
- GH1.25 8PIN cable x1
Outline Dimensions
