10.1inch HDMI LCD (H) (with case), 1024x600

Waveshare 11502 - 1024x600, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Multi Interfaces

The LCD and Control Board

• 1024x600 high resolution
• Capacitive touch control
• When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
• When work as a computer monitor, supports Windows 10/8.1/8/7/XP, single touch, and driver free
• Supports BB Black, comes with Angstrom image
• Multi video input interfaces: HDMI, VGA, and AV(CVBS)
• Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
• Supports 100-level backlight adjustment
• Firmware is upgradable to support more new features (continually updated)

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

The Case

• Material : high quality clear Acrylic
• Comes with bottom holder, 45° tilt angle
• Features mounting holes for Raspberry Pi 3B/2B/B+/A+/B, and BB Black

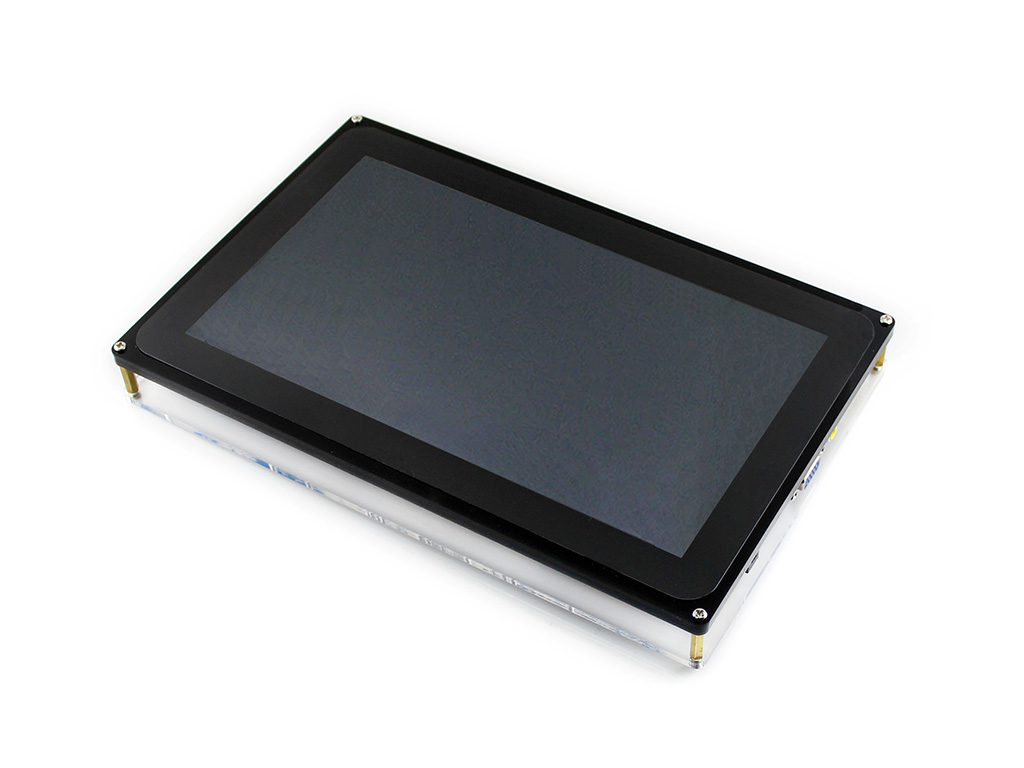

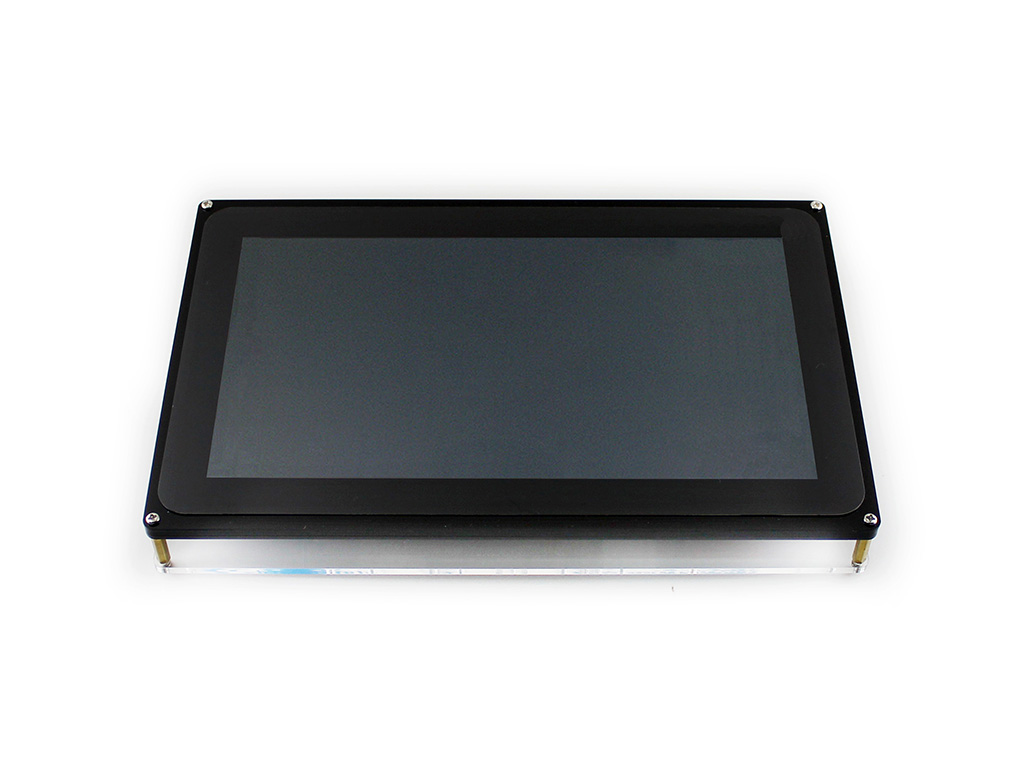

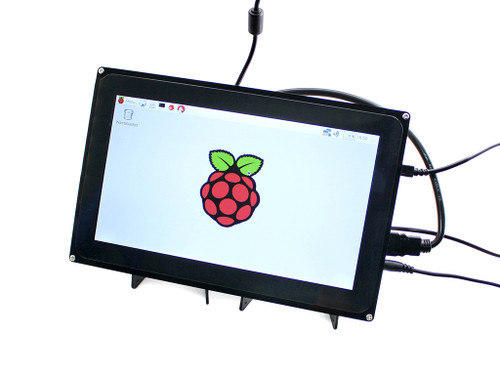

Photos

Note: Raspberry Pi in the photos is NOT included.

External Dimension

Development Resources

Wiki : www.waveshare.com/wiki/10.1inch_HDMI_LCD_(H)_(with_case)

Note :

Pi 3B = Raspberry Pi 3 Model B
If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.

Anti-Piracy

CAUTION: This product is protected by patent, anyone making copies/knock-offs SHOULD be held liable pursuant to law.

Since the first-generation Raspberry Pi released, Waveshare has been working on designing, developing, and producing various fantastic touch LCDs for the Pi. Unfortunately, there are quite a few pirated/knock-off products in the market. They're usually some poor copies of our early hardware revisions, and comes with none support service.

To avoid becoming a victim of pirated products, please pay attention to the following features when purchasing:
