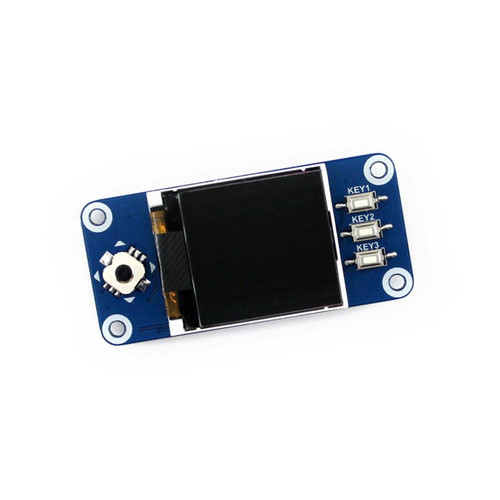

128x128, 1.44inch LCD display HAT for Raspberry Pi
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 1253 |
| UPC: | 614961951464 |
Waveshare 13891 - 1.44inch LCD display HAT for Raspberry Pi, 128x128 pixels, SPI interface.
Overview
This is an LCD display HAT for Raspberry Pi, 1.44inch diagonal, 128x128 pixels, with embedded controller, communicating via SPI interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
Features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- 1x joystick (5-position), 3x pushbuttons, handy and useful
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- Driver: ST7735S
- Interface: SPI
- Display color: RGB, 65K color
- Resolution: 128x128
- Backlight: LED
- Operating voltage: 3.3V
Interface
| SYMBOL | RASPBERRY PI PIN (BCM) | DESCRIPTION |
|---|---|---|
| KEY1 | P21 | Button 1/GPIO |
| KEY2 | P20 | Button 2/GPIO |
| KEY3 | P16 | Button 3/GPIO |
| Joystick Up | P6 | Joystick Up |
| Joystick Down | P19 | Joystick Down |
| Joystick Left | P5 | Joystick Left |
| Joystick Right | P26 | Joystick Right |
| Joystick Press | P13 | Joystick Press |
| SCLK | P11/SCLK | SPI clock input |
| MOSI | P10/MOSI | SPI data input |
| DC | P25 | Data/Command selection (high for data, low for command) |
| CS | P8/CE0 | Chip selection, low active |
| RST | P27 | Reset, low active |
| BL | P24 | Backlight |

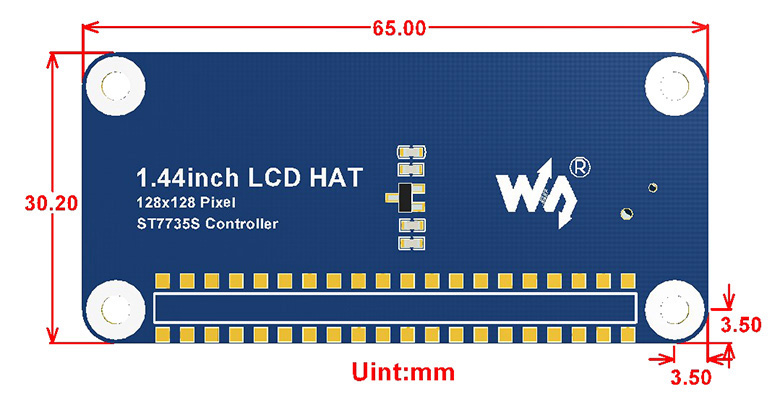

Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/1.44inch_LCD_HAT
Content
- 1.44inch LCD HAT x1
- RPi screws pack (2pcs) x1
