160x80, General 0.96inch LCD display Module, IPS, HD
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 1737 |
| UPC: | 614961953666 |
Waveshare 15868 - 0.96inch LCD display Module, IPS screen, 160x80 HD resolution, SPI interface

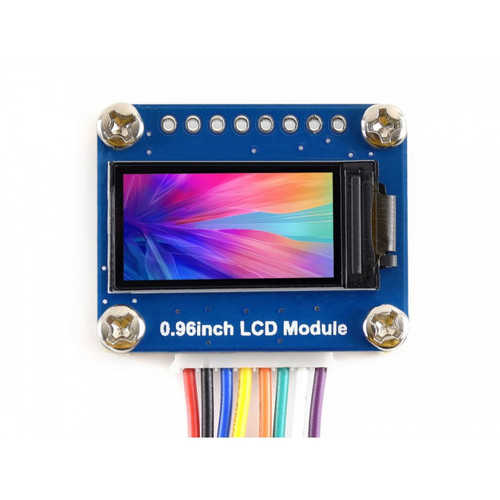

This is a general LCD display Module, IPS screen, 0.96inch diagonal, 160x80 HD resolution, with embedded controller, communicating via SPI interface. It can be used with Raspberry Pi, Arduino, and STM32. The Resources link below contains sample code and wiring diagrams for these three platforms. Connections to the micro-controller boards are made using the included 8 pin jumper set.
Features
- SPI interface, requires minimum GPIO for controlling
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
- Driver: ST7735S
- Interface: SPI
- Display color: RGB, 65K color
- Resolution: 160x80
- Backlight: LED
- Operating voltage: 3.3V
Content
- 0.96inch LCD Module
- PH2.0 20cm 8 Pin jumper set
Interface
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | Power (3.3V input) |
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/0.96inch_LCD_Module
