240x240, 1.3inch IPS LCD display HAT for Raspberry Pi
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 278-1 |
| UPC: | 614961952317 |

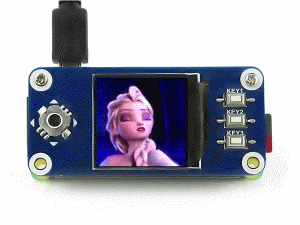

Waveshare 14972 - 1.3inch IPS LCD Display HAT For Raspberry Pi, 240x240 Pixels, SPI Interface
This is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240x240 pixels, with embedded controller, communicating via SPI interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
Features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- IPS screen, wide viewing angle, better display
- High definition in small size
- 1x joystick, 3x pushbuttons, handy and useful
- Comes with development resources and manual (examples for Raspberry Pi)
Specifications
- Driver: ST7789
- Interface: SPI
- Display color: RGB, 65K color
- Resolution: 240x240
- Backlight: LED
- Operating voltage: 3.3V
Interface
| SYMBOL | RASPBERRY PI PIN (BCM) | DESCRIPTION |
|---|---|---|
| KEY1 | P21 | Button 1/GPIO |
| KEY2 | P20 | Button 2/GPIO |
| KEY3 | P16 | Button 3/GPIO |
| Joystick Up | P6 | Joystick Up |
| Joystick Down | P19 | Joystick Down |
| Joystick Left | P5 | Joystick Left |
| Joystick Right | P26 | Joystick Right |
| Joystick Press | P13 | Joystick Press |
| SCLK | P11/SCLK | SPI clock input |
| MOSI | P10/MOSI | SPI data input |
| DC | P25 | Data/Command selection (high for data, low for command) |
| CS | P8/CE0 | Chip selection, low active |
| RST | P27 | Reset, low active |
| BL | P24 | Backlight |

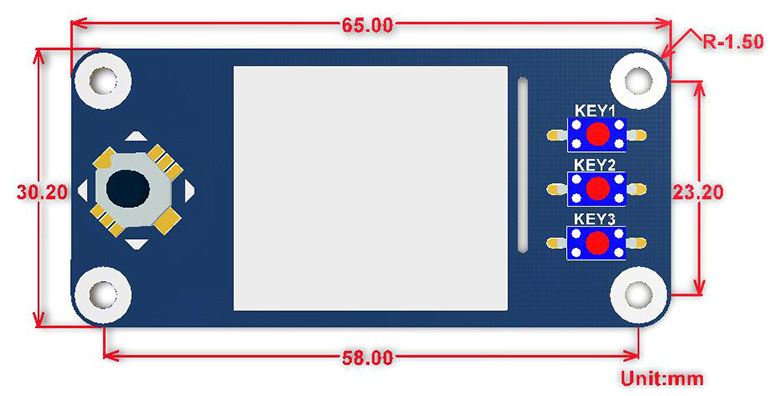

Dimensions
