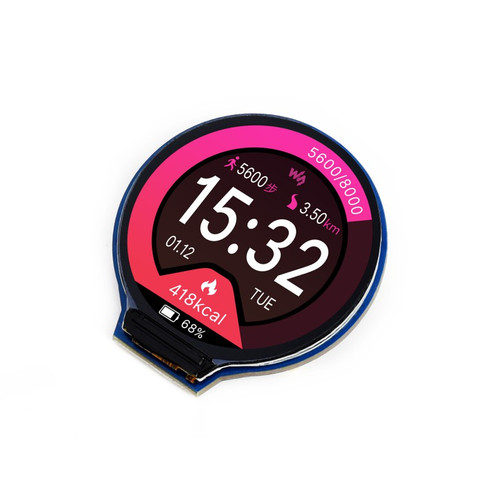

240x240, General 1.28inch Round LCD Display Module, 65K RGB
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 1684-1 |
Waveshare 19192 - 1.28inch Round LCD Display Module, 65K RGB Colors, 240×240 Resolution, SPI Interface
Features
- 240×240 resolution, 65K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
| Operating voltage | 3.3V / 5V | Resolution | 240 × 240 pixels |
|---|---|---|---|
| Communication Interface | 4-wire SPI | Display size | Φ32.4mm |
| Display Panel | IPS | Pixel size | 0.135 × 0.135mm |
| Driver | GC9A01 | Dimensions | 40.4 × 37.5mm Φ37.5mm |
Hardware Connection
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Includes
- 1.28inch LCD Module x1
- PH2.0 8PIN 20cm cable x1
Weight: 0.015 kg
Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board
Outline Dimensions
Resources
- Wiki: 1.28inch_LCD_Module
