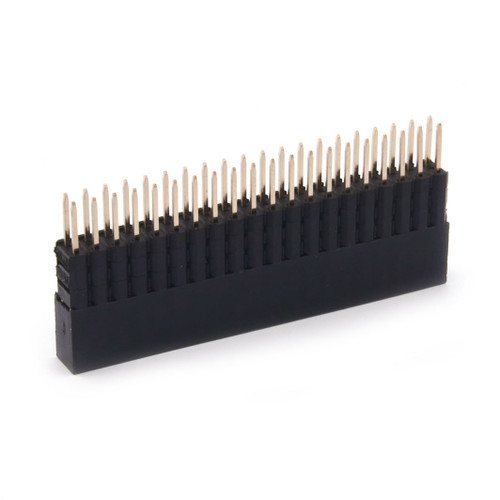

40 Pin GPIO Connector Header

Stack multiple plates, breakouts etc onto your Raspberry Pi Model B+ with this custom-made 2x20 female header. The female header part has extra spaces to make it tall: when placed on your Pi, a PCB will clear the Ethernet and USB jacks. The stacky pin part is also extra-long  so that when a standard 1.5mm thickness PCB is installed, there will be some space remaining, plenty to plug into.

Features

•  40 Pin Double Row (2x20) Socket Connector
• Extension for the Raspberry Pi GPIO Connectors
• Fully Tested on the Raspberry Pi Model B+

DIMENSIONS

• Overall Height: 22 mm
• Exposed Pin: 6.5 mm
• Body Height: 15.5 mm
