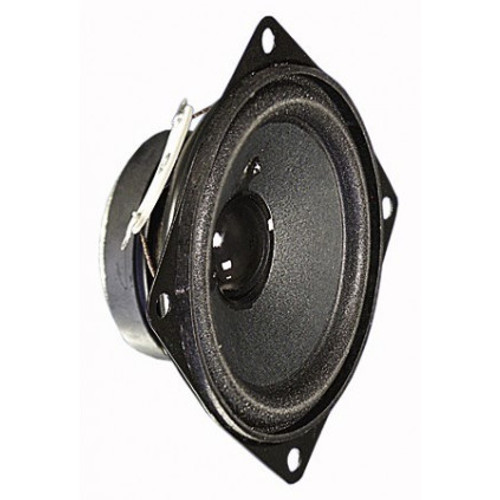

5W 4 Ohm 65mm Full Range Speaker
| SKU: | 1574 |
This is a high quality6.5 cm (2.5") Full Range 4ohm 5W Speaker with minimal mounting depth and small magnet. Very good high range response. Suitable in machines and other equipment where space is at a premium.
The sound quality from this speaker is excellent and is ideal for many audio applications.
Attributes:
- Moisturised cone
- Metal basket
Technical Specifications:
| Manufacturer | Visaton |
| Manufacturer part number | FR 7 4 OHM |
| Rated power | 5 W |
| Maximum power | 10 W |
| Nominal impedance Z | 4 Ohm |
| Frequency response | 130 to 20000Hz |
| Mean sound pressure level | 86 dB (1W/1m) |
| Opening angle (-6 dB) | 86/4000Hz |
| Height of front pole-plate | 2,5 mm |
| Voice coil diameter | 14 mm |
| Height of winding | 2,5 mm |
| Cut-out diameter | 61 mm |
| Net weight | 0,092 kg |
| D.C. resistance Rdc | 3,4 Ohm |
| Mechanical Q factor Qms | 7.05 |
| Electrical Q factor Qes | 3,61 |
| Total Q factor Qts | 2,39 |
| Inductance of the voice coil L | 0,1 mH |
| Temperature range | -25 ... 70 C |
