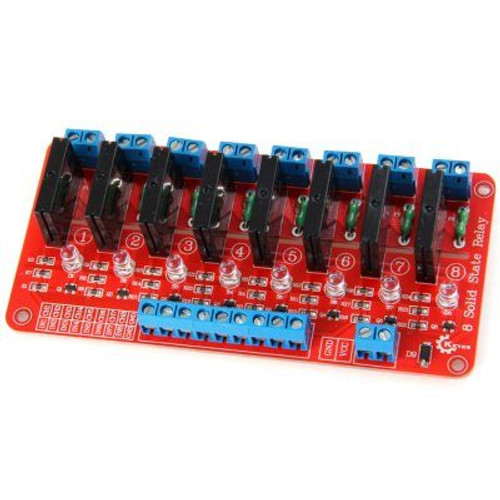

8-Channel Solid State Relay Module
| SKU: | 621 |
This 8-Channel Solid State Relay Module is compatible with many micro-controller boards such as Arduino and Raspberry Pi.
Specifications
- 5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A
- Input Power: 5VDC (160MA)
- Control signal input voltage: (0-2.5V low state relay OFF ) (3-5V state high relay ON )
- Voltage:5V
- Quiescent current: 0 mA
- Operating current: 1 WAY:13.8mA .. 2 WAY: 26.8mA . 3 WAY: 37mA . 4 WAY: 48mA . 5 WAY: 59mA . 6 WAY: 70mA . 7 WAY: 81mA . 8 WAY: 90mA
- Trigger Voltage: 3.3-5V
- Trigger current: 2mA
- Product Weight: 0.082 kg
- Product Size(L x W x H): 12.50 x 5.90 x 2.00 cm / 4.91 x 2.32 x 0.79 inches
Channels
- DC +: positive power supply (according to the relay voltage supply)
- DC-: negative power supply
- CH1-8: relay module signal triggering end (High trigger effective)
Resources
Ks0266 keyestudio Eight-channel Solid State Relay Module Wiki
