Adafruit - 32x32 RGB LED Matrix Panel - 6mm pitch
| Brand | Adafruit |
| SKU: | 2033-2 |

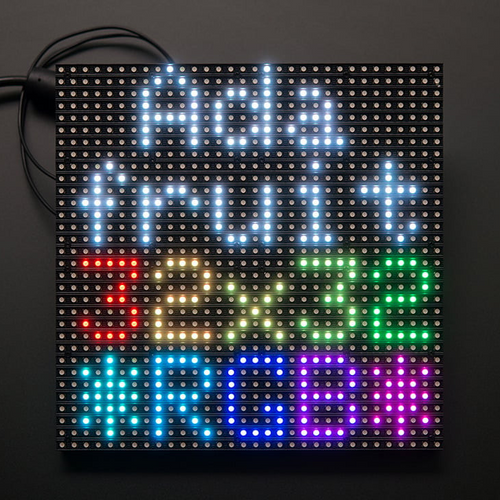

Bring a little bit of Times Square into your home with this sweet 32 x 32 square RGB LED matrix panel. These panels are normally used to make video walls, here in New York we see them on the sides of busses and bus stops, to display animations or short video clips. We thought they looked really cool so we picked up a few boxes of them from a factory. They have 1024 bright RGB LEDs arranged in a 32x32 grid on the front on a 6mm grid. On the back, there is a PCB with a set of dual IDC connectors (one input, one output: in theory you can chain these together) and 12 16-bit latches that allow you to drive the display with a 1:16 scan rate.
These panels require 13 digital pins (6-bit data, 7-bit control) and a good 5V supply, up to 4A per panel.
Comes with
- A single 32x32 RGB panel
- An IDC cable
- A plug-in power cable
Keep in mind that these displays are designed to be driven by FPGAs or other high-speed processors: they do not have built-in PWM control of any kind. Instead, you're supposed to redraw the screen over and over to 'manually' PWM the whole thing. This display does best with a high speed, high RAM microcontroller like a SAMD21, SAMD51, ESP32, etc. The good news is that the display is pre-white balanced with nice uniformity so if you turn on all the LEDs it's not a particularly tinted white.
Of course, we wouldn't leave you with a datasheet and a "good luck!" We have a full wiring diagram and working Arduino library code with examples from drawing pixels, lines, rectangles, circles, and text. You'll get your color blasting within the hour! You'll need 13 digital pins, and about 1600 bytes of RAM to buffer the 12-bit color image. You cannot use this size panel with an Arduino UNO (ATmega328) or ATmega32u4 - you need a chip with more RAM!
These displays are technically 'chainable' - connect one output to the next input - as long as you have the RAM to handle it
Please note! These panels are remainder stock from factories that make huge light boards. For that reason, the look and size might vary from batch to batch, even though the basic operation, codebase and tutorial is the same.
Technical Details
- Dimensions: 190.5mm x 190.5mm x 14mm / 7.5" x 7.5" x 0.55"
- Panel weight with IDC cables and power cable: 357.51g
- 5V regulated power input, 4A max (all LEDs on)
- Compatible with M3 mounting screws
- 5V data logic level input
- 2000 mcd LEDs on 6mm pitch
- 1/16 scan rate
- Indoor display, 150 degree visibility
- Displays are 'chainable' - connect one output to the next input - but our Arduino example code does not support this yet
As of August 11, 2020 - We no longer include Magnetic Feet with this product
