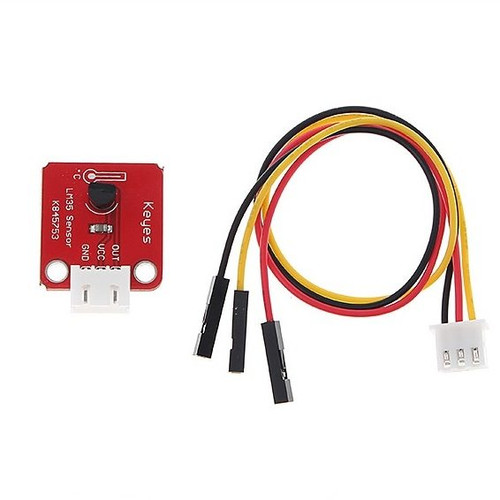

Arduino Compatible Analog Temperature Sensor

This is an analog temperature sensor on a small circuit board that is designed to work with all of the Arduino boards. It is easy to incorporate into any project requiring only a 5v supply, ground, and an analog input to measure the sensors readings. It can be used to detect temperatures from ÂˆÂ’55°C to +150°C. This sensor can be used to monitor the temperature of anything that you can think of so that your Arduino can react to the temperature changes.

Key Features:

Includes the sensor and connector cable
Main chip: LM35 Analog Temperature Sensor Module
Temperature Range ˆ’55°C to +150°C
Working voltage: DC 4-30V
Less than 60-μA Current Drain
Low Self-Heating, 0.08°C in Still Air
Nonlinearity Only ±¼°C Typical
Low Impedance Output, 0.1 Ω for 1 mA Load
-1~6V analog output voltage, the higher the temperature the higher the voltage
Quick response, long life and reliable stability
2 Mounting holes on the PCB

Dimensions: Depth 9.5mm, Height 27.1mm, Width 21.3mm, Weight 4.4g

Data Sheet: http://www.ti.com/lit/ds/symlink/lm35.pdf
