Breadboard Adapter for Lego Mindstorms
| SKU: | 424 |
This Breadboard Adapter for Lego® Mindstorm® NXT & EV3 to help you connect it to electronics, sensors, and prototypes. Never struggle to find 82k resistors for your project again because this adapter comes with built-in 82k resistors €” no soldering required!
The Dexter Industries Breadboard Adapter is a fully assembled adapter for the Lego® Mindstorms® NXT & EV3. Never struggle to find 82k resistors for your project again because this adapter comes with built-in 82k resistors. The entire adapter comes fully assembled €” no soldering required!
- A breadboard adapter for the Lego Mindstorm NXT and EV3.
- Breakout board for the Lego motor and sensor cables.
- Connects the NXT or EV3 to a breadboard.
- Built-in 82k resistors.
- Ships fully assembled, no soldering required.
Downloads
Download the schematic and board here.
Diagram of Breadboard Adapter as a Sensor Breakout:

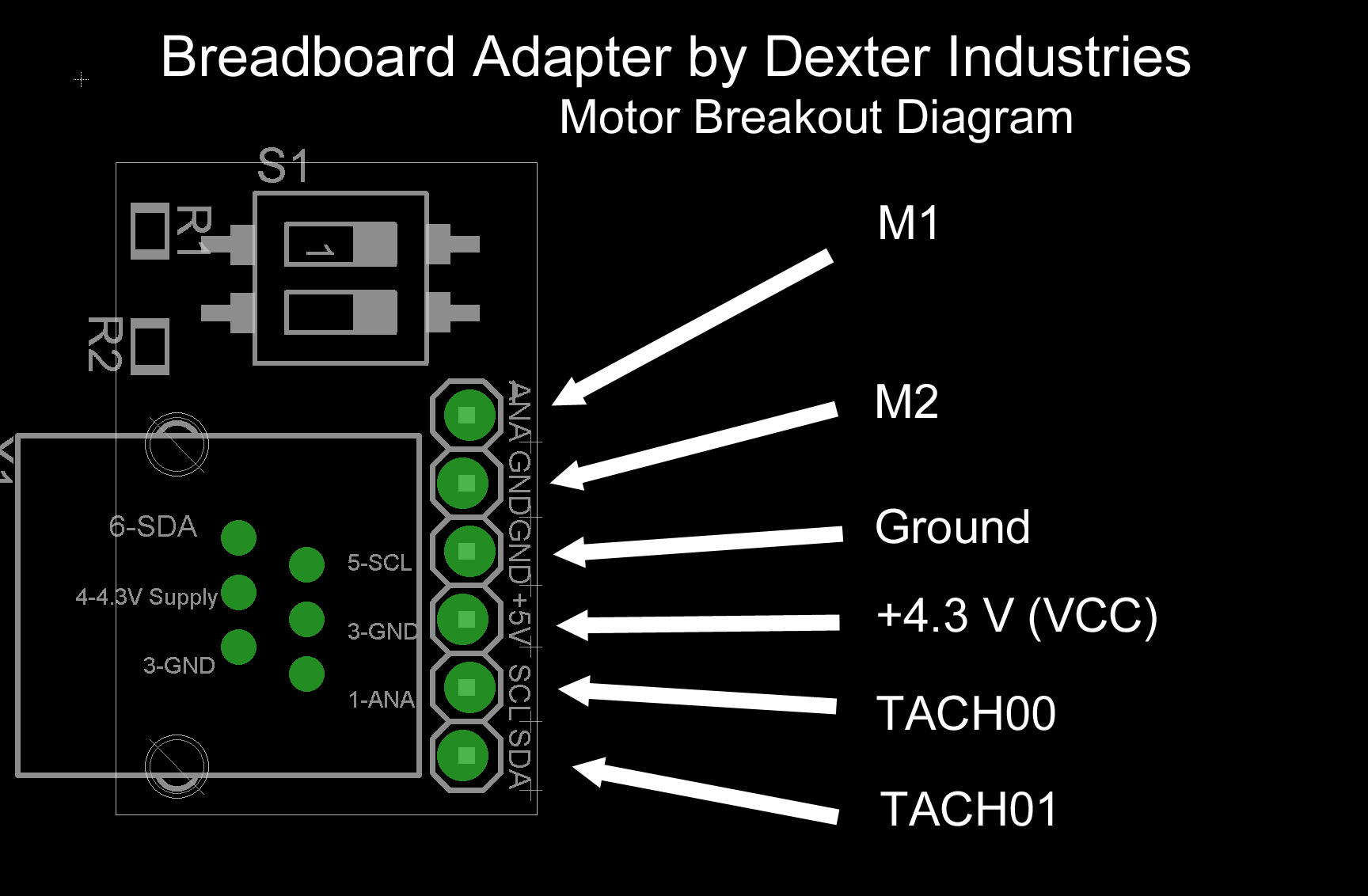

Diagram of Breadboard Adapter as a Motor Breakout:
