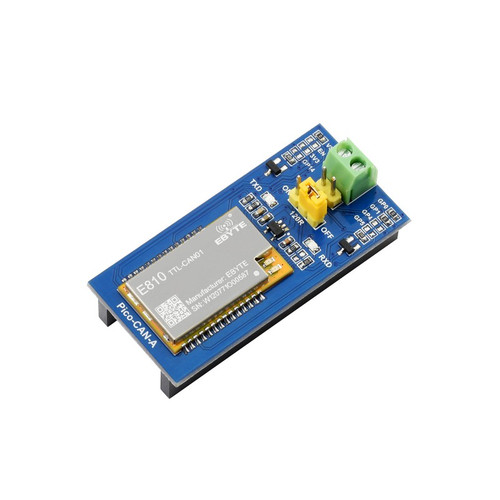

CAN Bus Module for Raspberry Pi Pico, UART to CAN conversion
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 1909 |
Waveshare 20240 - CAN Bus Module For Raspberry Pi Pico, Enabling Long Range Communication Through UART
Features
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- Incorporates E810-TTL-CAN01 module, UART to CAN bus conversion
- Three conversion methods: transparent conversion, transparent conversion with identification, and protocol mode conversion
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Note: There is a permanently installed terminator in the module in addition to the configurable one.
Specifications
| Operating voltage | 3.3V | CAN transceiver | E810-TTL-CAN01 |
|---|---|---|---|
| Communication bus | UART | Baudrate | 300~921600bps |
What's On Board
- E810-TTL-CAN01 module
- Module operating indicator
- Module status indicator
operating mode: blinking at 1Hz frequency
command configuration mode: blinking at 5Hz frequency - TX/RX indicators
- Resistor config
ON: connected to 120R matching resistor
OFF: disconnected from 120R matching resistor (default) - CAN bus terminal
- Power supply selection
- UART selection
Pinout Definition
Outline Dimensions
Includes
- Pico-CAN-A x1
Resources
- WIKI: Pico-CAN-A
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
