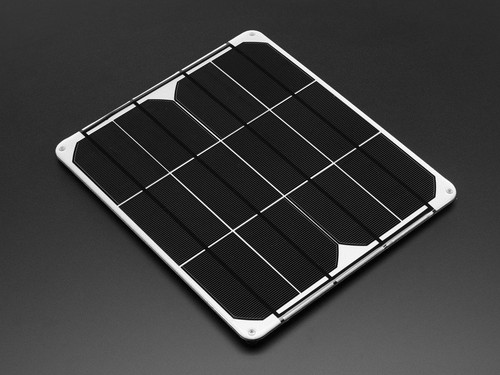

Colossal 6V 9W Solar Panel - 9.0 Watt

These 6 Volt, 9 Watt panels come to us from Voltaic Systems, makers of fine solar-powered bags and packs. They are waterproof, scratch resistant, and UV resistant.

Using a high efficiency monocrystalline cell and outputting 6V at ~1.5A via 3.5mm x 1.1mm DC jack connector, they are a nice upgrade to the 2W or 3W panels we have been carrying. The substrate is an aluminum / plastic composite, specifically designed to be strong and lightweight. These panels can easily stand up to typical outdoor use including being dropped and leaned on. They're very high quality and suggested for projects that will be exposed to the outdoors. These come with 4 plastic mounting screws which makes it easy to attach the panel, even to fabric!

We have a range of solar panels to choose from: Medium 6V 2W, Huge 6V 5.6W, and this one Adafruit is calling Colossal 6V 9W!

To connect, Adafruit suggests a 3.5mm OD/1.1mm ID DC jack.

If you want to use this to charge a battery or run your project, check out this optimized Solar Lithium Ion/Polymer charger!

For some nifty ideas on what to do with your solar panels, check out Voltaic's DIY page

Technical Details

Dimensions:

• 254mm x 223.5mm / 10" x 8.8"
• Thickness (without screws): 5mm / 0.2"
• Thickness (with screws): 10mm  / 0.4"
• Wire Length: 282mm / 11.1"
• Weight: 309g

Specifications:

• Monocrystalline cells - 19% efficient
• Open Circuit Voltage: 7.0V
• Peak Voltage: 6.0V
• Peak Current: 1500mA
• Peak Power: 9.0 Watt

Construction:

• Urethane coating
• 3mm Aluminum/Plastic composite substrate

Mounting and Cables:

• Four screws on back corners of panel allow multiple mounting options
• Output cable is 8.5 inches, 22cm long and has 3.5x1.1mm plug

For product support, replacement parts and warranty for all Voltaic products, click here!
