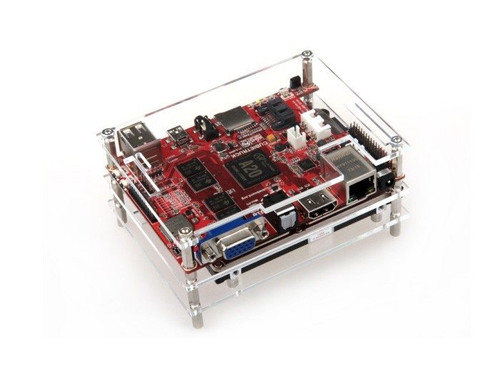

Cubietruck(CB3) - standard package
| SKU: | 2019-old |
Cubietruck is the 3rd board of Cubieteam, we also name it Cubieboard3. It's a new PCB model adopted with Allwinner A20 main chip, the same with Cubieboard2. But it is enhanced with some additional features, such as 2GB memory, VGA display interface on-board, 1000M NIC, WIFI+BT on-board, supporting Li-battery and RTC, and SPDIF audio interface.
Features:
- Allwinner Tech A20 SOC
- SATA supported
- 54 extended pins
- Built-in HDMI/ VGA display interface
- Built-in WIFI+BT module
- 2GB DDR3 RAM
- Built-in IR receiver
- SPDIF audio interface
Specifications:
- Allwinner Tech SOC A20 ARM® Cortex„¢-A7 Dual-Core ARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1
- 2GB DDR3@480MHz
- HDMI&VGA 1080P display output on-board
- 10M/100M/1G Ethernet
- WIFI + BT wireless connection with antenna on-board
- SATA 2.0 interface support 2.5' HDD (for 3.5' HDD, only need another 12V power input)
- Storage solution NAND + MicroSD
- 2 x USB HOST, 1 x OTG, 1 x SPDIF, 1 x IR, 4 x LEDs, 1 x Headphone, 3 x Keys
- Power DC5V@2.5A with HDD support Li-battery & RTC
- 54 extended pins including I2S, I2C, SPI, CVBS, LRADC x2,UART, PS2, PWM x2, TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVIN x4 with 2.0 pitch connectors
- PCB size 11cm *8cm*1.4mm
Includes:
- Cubietruck main board x1
- SATA 2.0 cable x1
- Mini USB to OTG x1
- Mini USB cable x1
- USB to 1.7 mm DC jack cable x1
- Acrylic shell x1
- Ultrathin Heat Sink x1
Documents:
Install Lubuntu
- Lubuntu-12.10-Desktop Nand Installation Guide(20131015-build)
- Lubuntu-12.10-Desktop SD Card Installation Guide
- Install Lubuntu Desktop/Server Rootfs to SATA drive
Install Android
Install Fedora
Software
- Images for Cubietruck(A20)( The linaro's username and password should be linaro/linaro)
- More software downloads from Cubieboard download website
