Dedicated 3007 Cooling Fan for Raspberry Pi CM4, Low Noise, 12V
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 1529-1 |
Waveshare 19720 - Dedicated 3007 Cooling Fan For Raspberry Pi Compute Module 4 CM4, Low Noise, With Thermal Tapes - CM4-FAN-3007-12V
Specifications
| General | Low-profile, PWM speed adjustment |
|---|---|
| Interface | 4-wire PWM speed-adjustable fan header |
| Rated speed | 8000±10%RPM |
| Rated power | 1.62W (12V, 0.135±0.02A) |
| Cable length | 90±10mm |
| Dimensions | 54×39×13mm |
- Tailored For Raspberry Pi CM4 - Matching With The CM4 On Size And Mounting Holes, Fast Heat Dissipation
- Proper Space For Antenna Section - No Hindrance To The Antenna
- Using With Base Board
- Comparing CM4 Cooling Solutions
Package content
- CM4-FAN-3007 x1
- Screws and thermal tapes x1
Weight: 0.042 kg

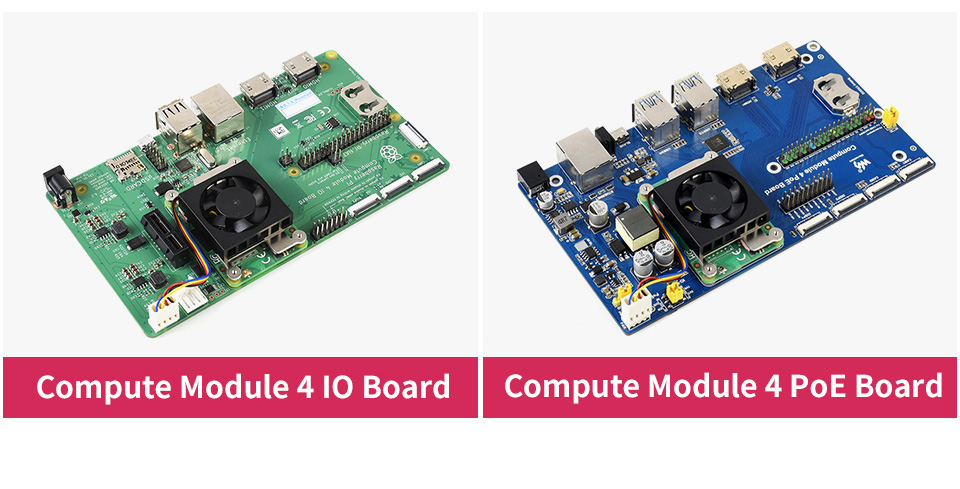

Using With Base Board

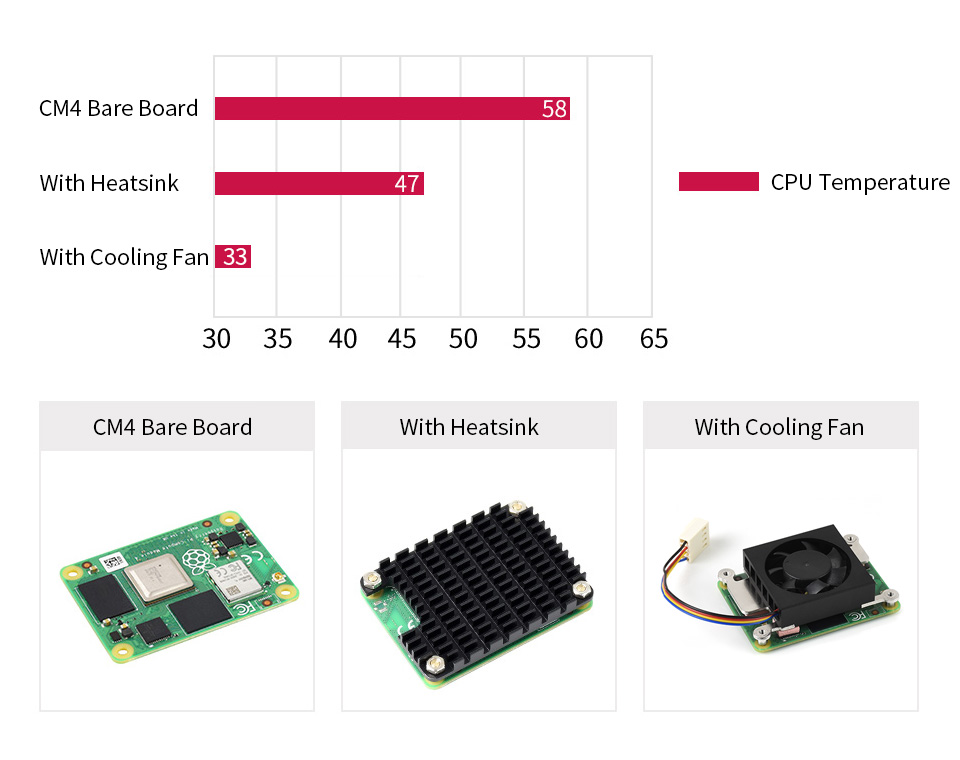

Comparing CM4 Cooling Solutions
Outline Dimensions
How To Install
1. Attach thermal tapes onto the CM4
2. Fix the screws as the pictures shown
