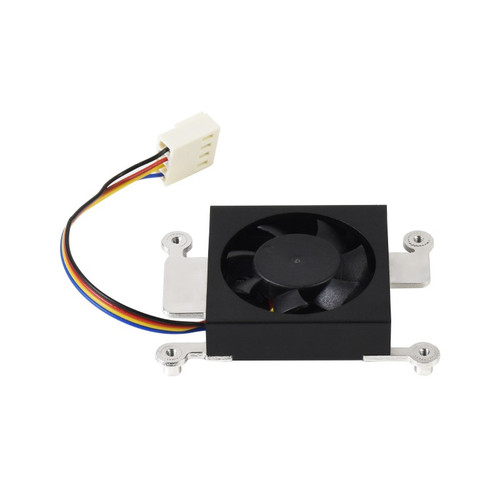

Dedicated 3007 Cooling Fan for Raspberry Pi CM4, Low Noise, 5V
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 638-1 |
Waveshare 23326 - Dedicated 3007 Cooling Fan For Raspberry Pi Compute Module 4 CM4, Low Noise, With Thermal Tapes, 5V - CM4-FAN-3007-5V
Specifications
| Version | 3007-5V | 3007-12V |
|---|---|---|
| Rated power | 1W (5V, 0.2±0.02A) | 1.62W (12V, 0.135±0.02A) |
| Rated speed | 5000±10%RPM | 8000±10%RPM |
| General | Low-profile, PWM speed adjustment | |
| Interface | 4-wire PWM speed-adjustable fan header | |
| Cable length | 90±10mm | |
| Dimensions | 54×39×13mm | |
Includes
- CM4-FAN-3007 x1
- Screws and thermal tapes x1
Outline Dimensions
How To Install
- Attach thermal tapes onto the CM4
- Fix the screws as the pictures shown
