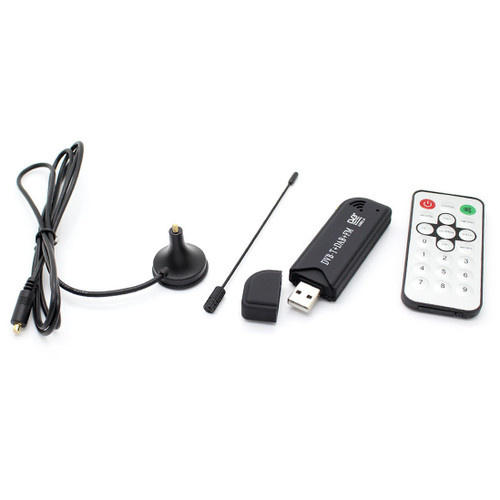

DVB-T Digital Receiver USB Dongle w/ FM / Remote Control / Antenna
| SKU: | 1230 |
Please note: you won't be able to use this kit as a TV tuner! The DVB-T standard is not used in North America.
This products is used for various communication projects with RTL-SDR. More information here: rtl-sdr.com - About RTL-SDR
Hardware
- Tuner chip: FC0012 - NOT suitable for ADS-B!
- Interface: 1 x USB 2.0, 1 x MCX antenna port
- Power consumption: No more than 1.5W
- Input: 75 Ohm IEC (Din) Connector
- Remote controller: 1 x CR2025 3V battery (included)
- Transmission distance: 5 meters
Included software abilities:
- Audio format: MP3
- Video format: AVI-MPEG4 / ASF-MPEG4 / MP4-MPEG4 (for iPod) / PSP-MPEG4 / 3GP-MPEG4 / AVI-DIVX / AVI-XVID / MOV-MPEG4
- OS language: English, German, French, Spanish, Italian, Portuguese, Russian, Dutch
- DVBT: 48.25~863.25 MHz
- FM radio: 87.5~108 MHz
- DAB radio: L-Band-1452960~1490624 KHZ, VHF-174928~239200 KHZ
- Bandwidth: 6 / 7 / 8 MHZ
- Punctured codes: 1/2, 2/3, 3/4, 4/5, 5/6 and 7/8
- Record format: DVB-T (MPEG-2), FM radio/DAB radio (WMA)
- Supported Operating Systems: Windows XP / Linux / 7 / Vista
1 Review Hide Reviews Show Reviews
-
Do not buy for Pi-Aware!
The item description mentions that this device is suitable for projects such as FlightAware's Pi-Aware (ADS-B receiver). It is NOT! It uses the FC0012 Tuner instead of the more suitable R820T / R820T2. As such, it is incompatible with the 1090 mhz frequency as evidenced by this line returned by dump1090-fa:
[FC0012] no valid PLL combination found for 1090000000 Hz!
If you are seeking anything more than basic FM radio, this device will not suit your needs. Look for the Adafruit RTL-SDR also sold on this site instead. It features the more capable R820T tuner.
