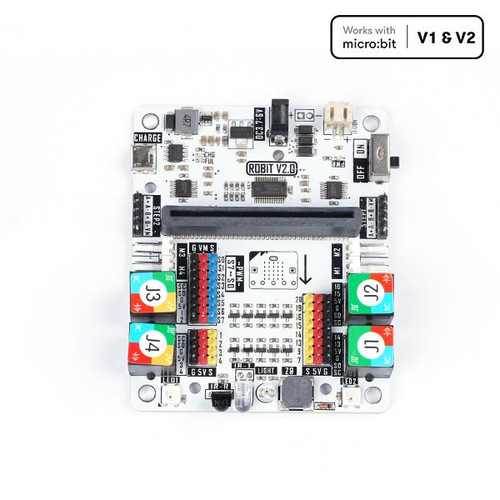

ELECFREAKS micro:bit Robit - DIY Mini Smart Cars Robot Development Platform Chassis
| SKU: | 1486-1 |
Robit is a motherboard of a smart car based on micro:bit. It is compatible with MBOT. Except for the integration of the simple and convenient RJ25 connector, motor connector, and sensor on MBOT, we have extended 4 DC motor connectors, and 2 stepping motor connectors(same with 4 DC motor connectors), 8 PWM signal output connectors on this board. You can use it to drive PWM signal driving devices like a servo. It has 8 G-5V-S digital signal connectors(for connecting with OCTOPUS electric bricks). Robit can realize all the current basic functions of MBOT. Besides, you can extend its usage with more sensors, motors, servos, stepping motors, and so on.
DIMENSION
FEATURES
Compatible with MBOT chassis and sensors.
Support 4 channels of DC motor and 2 channels of stepping motors.
With 8 PWM signal output connectors.
With 8 G-5V-S digital signal connectors(for OCTOPUS electric brick).
With 4 G-5V-S analog signal connectors(for OCTOPUS electric brick).
Integrate frequently used modules like a buzzer, rainbow LED, light sensor, infrared send, and receive.
PINS & CONNECTORS
DETAIL
RJ25 Connector
Robit has 4 RJ25 connectors. Each RJ25 connector has 6 touch points. These points respond to power, 2 IO ports, and IIC ports separately. It is compatible with some sensors on mBOT.
| RJ25 Connector | Match Pins on micro:bit |
|---|---|
| J1 | SCL(P19)/SDA(P20)/GND/5V/P13/P14 |
| J2 | SCL(P19)/SDA(P20)/GND/5V/P15/P16 |
| J3 | SCL(P19)/SDA(P20)/GND/5V/P1/P2 (support 5V analog input sensor) |
| J4 | SCL(P19)/SDA(P20)/GND/5V/P3/P4 (support 5V analog input sensor) |
GVS Standard Electric Brick Connector
Except leading out to the RJ25 connector, the IO port on micro:bit also leads out with the format of GVS. It supports 5V components. Besides, P1/P2/P3/P4 support 5V analog input sensors.
GVS Standard Servo Connector: S0~S7
You can connect 8 servos at most. This connector leads out from the chip PCA9685 and extends from the IIC connector on micro:bit instead of normal I/O ports.
DC Motor Connector: M1~M4
It allows you to connect 4 DC motors (max) at the same time. This connector leads out from the chip PCA9685 and extends from the IIC connector on micro:bit instead of normal I/O ports.
Stepping Motor Connector: STEP1 & STEP2
It enables you to connect 2 stepping motors(28BYJ-48-5V) at most.
Buzzer
The buzzer is connected to the P0 port on micro:bit.
Light Sensor
The light sensor on board is connected to the P10 port on micro:bit.
Infrared Emitting Diode
This infrared emitting diode is connected to the P6 port on micro:bit.
Infrared Receiving Diode
This infrared receiving diode is connected to the P8 port on micro:bit.
Rainbow LED
Two rainbows LED beads are connected to the P12 port on micro:bit.
DC Power Connector
DC power connector supports 3.7V~4.2V DC power. It is usually connected to a battery holder with 4 AAA batteries.
Li-battery Connector
Li-battery connector supports 3.7V~4.2V li-battery.
Li-battery Indicator
This indicator tells you battery power information. It is in blinking status. Blink once means 1 grid of power. And the full power has 4 grids. That means it will blink 4 times when the battery power is full.
USB Connector
This connector is only used to charge the li-battery. It doesn't support data transmission and its charging current is 500mA.
QUICK START
Hardware Connection
Fix robit onto mbot car.
Connect left motor to M1 port and right motor to M2 port.
Once completed, it looks like the following picture showed.
PARAMETERS
DC Power Input Voltage DC 3.7-6V
Li-battery Input Voltage DC 3.7-4.2V
USB Recharging Current 500mA
Extendable Analog IO Ports 4
Extendable Digital IO Ports 10
Max Stepping Motor Driven Quantity 8
DC Motor 4 Channels
Stepping Motor 2 Channels
Programmable LED Beads 2
Passive Buzzer Support
Photocell Sensor Support
Infrared Receive Support
Infrared Send Support
Dimension 90mm X 74mm
Net Weight 46g
