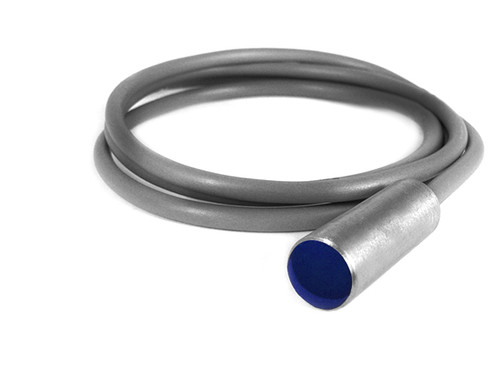

ENV-TMP - Field Ready Temperature Probe

Atlas Scientific Field Ready Temperature Probe.

€¢ Sample code included
€¢ Harsh environment
€¢ NEMA 6P
€¢ IP 68
€¢ Wide temperature range: -20 Celsius to 133 Celsius
€¢ Accuracy: ± 1°C
€¢ Cable length: 1 Meter
€¢ Fast reading time: <1 ms
€¢ Ultra low operating current: 6 μA
€¢ Wide operating voltage range: 3.1V to 5.5V
€¢ Maximum Vout = 3V
€¢ Power supply can be sourced by a microcontroller I/O pin
€¢ Shock resistant: 16,126,837 Pascals
(2,339 pounds per square inch)
€¢ Submersible
€¢ Food Safe
€¢ Water Tight
€¢ Dust Tight
€¢ Ice/sleet tolerant
€¢ Non reactive to salt water
€¢ Probe will sink when submerged
€¢ Dimensions 12mm X 35mm (1/2" X 1.4")

The ENV-TMP can be fully submerged in fresh water or salt water, up to the tinned leads indefinitely.

ENV-TMP Datasheet
Wiring Diagram

Arduino Sample Code
