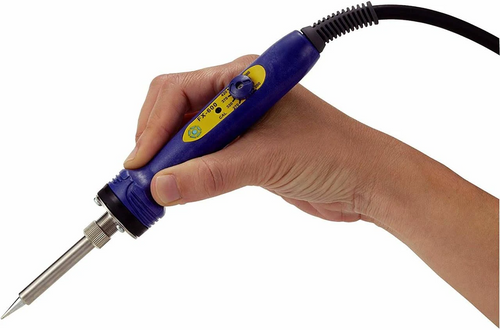

A lightweight portable soldering iron with a lock out temperature key. A perfect 74W iron for the DIY hobbyist that uses T18 tips. Over 30 different tip shapes at a temperature range from 400°-932°F.
Features
- Adjustable temperature control
- Portable & lightweight
- Uses T18 series tips, versatile and compact
Specifications
| Model Name | FX-600 |
| Input Voltage | 120VAC 60Hz |
| Power Consumption | 74W |
| Tip-to-Ground Resistance | < 2 Ω |
| Leak Voltage | < 2 mV |
| Temperature Range | 200â€500°C (400â€932°F) |
| Temp Accuracy | ±10°C (±18°F) |
| Temp Stability | ±1.0°C (±1.8°F) |
| Heater Type | HAKKO True Ceramic™ |
| Tips | T18 Series |
| Standard Tip | T18-B |
| Length (w/o cord) | 233 mm (9.17 in.) w/T18-B tip |
| Weight (w/o cord) | 61g (0.13 lb.) |
| Reach | 1.8m (6.0 ft.) |
| Safety Approval | MET™ |
Includes
- Soldering Iron
- Lock Key
- Standard Tip
