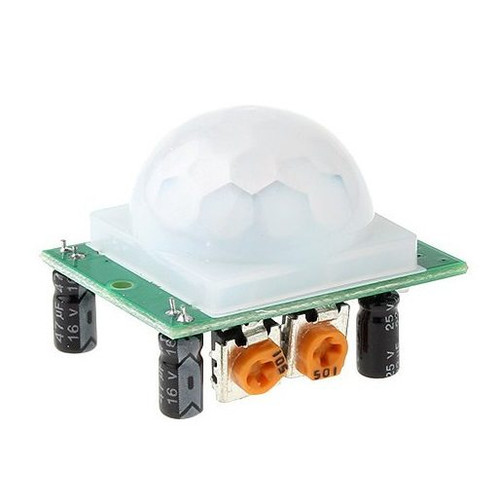

HC-SR501 Pyroelectric Infrared PIR Motion Sensor Detector Module
(No reviews yet)
Write a Review
| SKU: | 169 |
- Working voltage: DC5V-20V
- Quiescent Current: 65uA
- Level Output Voltage: High 3V / Low 0V
- Delaying time: 0.3~18s (adjustable)
- Blockade Time: 0.2s
- Trigger Method: L: unrepeatable trigger / H: repeatable trigger
- Detecting Range: 7m, less than 120 degree angle
- Working Temperature: -15'C ~ +70'C
- Screw hole pitch: 2.8mm
- Screw hole diameter: 2mm
- Ideal for DIY electronic circuit, sensor toys, sensor light, etc
No connectors are included with this device, use 3x Male to Female jumper wires to connect from the PIR's male pins to a breadboard.
