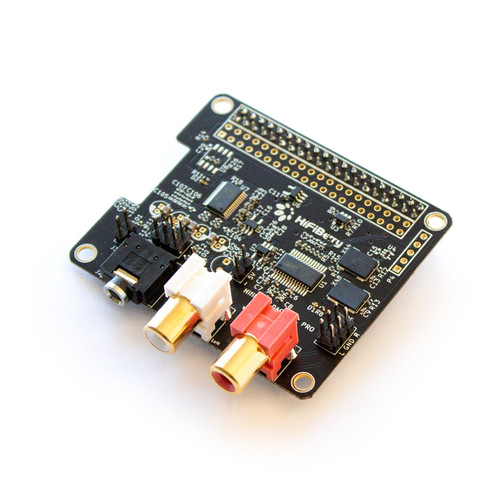

HiFiBerry DAC+ ADC Pro

(No reviews yet) Write a Review

$86.95

SKU:

1061-1

Description
Show Reviews

Discontinued - This product has been superseded by the DAC2 ADC Pro.

HiFiBerry DAC+ ADC Pro combines HifiBerry's well-know DAC+ Pro with an analogue input. Both input and output support sample rates up to 192kHz. Note that you might need to update your Linux kernel to support the audio input features (at least Raspberry Pi kernel 4.19.60)

The HiFiBerry DAC+ ADC Pro is a high-resolution digital-to-analog and analog-to-digital converter for the Raspberry Pi (newer models with 40 pin GPIO connector). This is a special sound card for the Raspberry Pi, optimised for one specific use case: the best audio playback and recording quality. It is specifically designed for applications that do not only need playback, but also recording functionalities.

Features

Stereo input and output
Dedicated 192kHz/24bit high-quality Burr-Brown DAC
Dedicated 192kHz/24bit high-quality Burr-Brown ADC
Hardware volume control for DAC and ADC. You can control the input and output parameters using “alsamixer” or any application that supports ALSA mixer controls.
Connects directly to the Raspberry Pi, no additional cables needed
No soldering, comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi, it is conform to the Raspberry Pi hardware-attached-on-top (HAT) specification.
Compatible with all Raspberry Pi models with a 40-pin GPIO connector
Directly powered from the Raspberry Pi, no additional power supply
Three ultra-low-noise linear voltage regulators for optimal audio performance
Low-jitter dual-domain clock for optimised clock decoupling from the Raspberry Pi
Mic bias voltage for the use with electret microphones
No anti-aliasing filter in the input path for best recording bandwidth
HAT compliant, EEPROM for automatic configuration
Gold plated RCA output connectors
Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board onto the Raspberry Pi
Audio input might require Linux kernel update (at least version 4.19.60)

Improvements compared to the DAC+ ADC base model are:

Dual-domain clock design that provides a master clock independent from the Raspberry Pi
Fully configurable analogue front-end that allow a wide variety of input levels (from mic level to full 2Vrms) – no more jumpers, you can do the configuration in software using alsamixer
Microphone bias voltage allows to use electret microphones (needs to be enabled with jumpers)
Higher input bandwidth as we removed the anti-aliasing filter in the input path

Bases on these differences, we recommend the DAC+ ADC Pro for the following scenarios:
