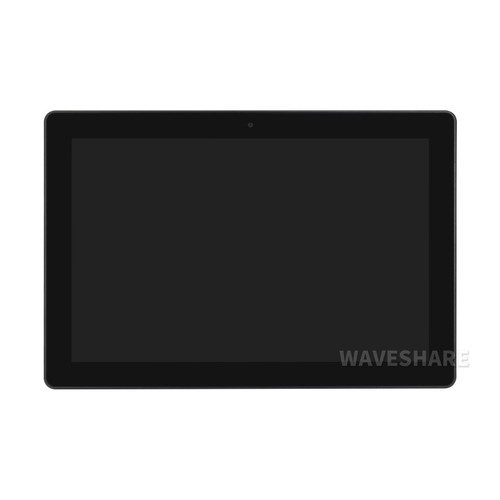

Industrial HMI All-in-one Touch Display For Raspberry Pi, 10.1inch, Dual 4K HDMI,10-point Touch, Aluminum Alloy Case
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 2210 |
Waveshare 29990 - Industrial HMI All-In-One Touch Display For Raspberry Pi, Options For 8inch / 10.1inch, Supports Dual 4K HDMI Output, 10-Point Touch, Optical Bonding, Aluminum Alloy Case, High-Efficiency Heat Dissipation - RPI-HMI-101D-ACCE (US)
Features
- 8/10.1inch DSI touch screen, ten-point capacitive touch control
- IPS display panel with hardware resolution of 1280×800
- Using optical bonding process to ensure clearer pictures and reduce light reflection
- Toughened glass capacitive touch panel, hardness up to 6H
- Dual 4Kp60 HDMI display output
- Integrated 5-megapixel front camera
- Supports Raspberry Pi 5/4 all-in-one installation.
- Directly drive the LCD by the DSI interface on the Raspberry Pi, with up to 60Hz refreshing rate
- Supports Bookworm system without driver when used with Raspberry Pi
- Supports software control of backlight brightness
- Aluminum alloy case with passive cooling design
- Embedded installation, compatible with VESA standard bracket installation
Includes
- 10.1inch touch display x1
- Mounting buckle (4PCS) x1
- Screws pack x1
- TF card 64GB x1
- OPTIONS 27W power supply x1
- 5W thermal pad 16*16*1mm x1
- Pi5-HMI Accessories Pack:
- PI5 side panel x1
- Aluminum alloy heatsink x1
- DSI-Cable-12cm x1
- Silicon button x1
- Camera cable -15cm x1
- Pi4-HMI Accessories Pack:
- PI4 side panel x1
- Copper heatsink x1
- DSI-Cable-12cm x1
- FFC 15PIN 1.0 pitch ~160mm x2
Specifications
| Parameter | Description |
|---|---|
| CPU | Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit SoC, clocked at 2.4GHz |
| GPU | OpenGL ES 3.1 & Vulkan 1.0 |
| CAM | Integrated 5-megapixel front camera |
| USB | 2 USB 2.0 ports, dual-layer Type A connector, each channel supporting up to 480Mbps 2 USB 3.0 ports, dual-layer Type A connector, each channel supports up to 5Gbps |
| ETH | Gigabit Ethernet |
| Wi-Fi | Dual-band 802.11ac Wi-Fi |
| BLE | Bluetooth 5.0/Bluetooth Low Energy (BLE) |
| HDMI | 2 standard HDMI ports, supporting 4K 60Hz |
| Memory | 64GB |
| Size | 8.0" / 10.1" |
| Resolution | 1280 x 800 |
| Refresh rate | 60Hz |
| Viewing angle | 178° |
| Max brightness | 300cd/㎡ |
| Color gamut | 50%NTSC |
| Backlight adjustment | Software dimming |
Interface Introduction
|
|
Dimensions
