Enter the (LED) matrix with this all-in-one, USB-C powered controller for HUB75 panels.

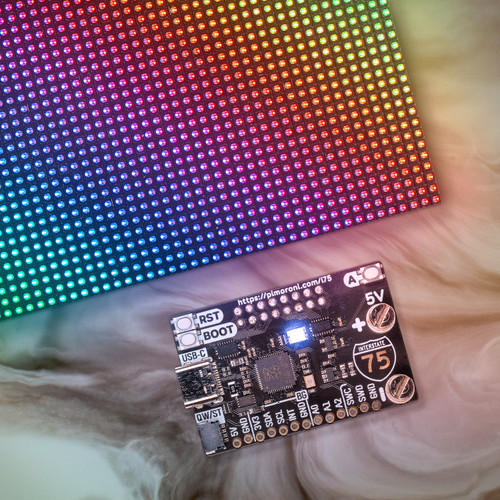

Interstate 75 is a RP2040-based driver board for HUB75-style LED matrices. It's designed to plug neatly into the back of a LED panel, and provides a quick and easy way to whip up some scrolling signage or an eye-catching LED display for sensor outputs.
Interstate 2040 is powered and programmable by USB-C. USB-C is capable of providing up to 3A of power which should be enough to power a single 64x64 (or smaller) panel, assuming you're not planning anything too eye-bleedingly bright. If you need more power than that (so you can chain multiple panels together, perhaps?) you can inject it into the screw terminals instead. There's also two useful buttons, a reset button and an onboard RGB LED.
Features
- Powered by RP2040 (Dual Arm Cortex M0+ running at up to 133Mhz with 264kB of SRAM)
- 2MB of QSPI flash supporting XiP
- Compatible with 32x32, 32x64 and 64x64 LED matrices.
- Sturdy screw terminals for powering the LED panels.
- USB-C connector for power and programming (3A max)
- Qw/ST (Qwiic/STEMMA QT) connector
- Reset, BOOT and a user button (the BOOT button can also be used as a user button)
- RGB LED
- Fully-assembled (no soldering required)
- Measurements: approx 48.5 x 31 x 17mm (L x W x H, including connectors)
- Schematic
- C++/MicroPython libraries
Software
Because it's a RP2040 board, Interstate 75 is firmware agnostic! You can program it with C/C++, MicroPython or CircuitPython.
The C++/MicroPython libraries contain some spiffy HUB75 drivers that use RP2040's PIO state machines and DMA to minimise CPU usage and maximise luscious, 10-bit gamma corrected colour depth.
You'll get best performance using C++, but if you're a beginner we'd recommend using our batteries included MicroPython build for ease of getting started.
Getting Started with Interstate 75
Download Pirate brand MicroPython
Interstate 75 function reference
C++ examples
MicroPython examples
You can also use CircuitPython on your Interstate 75! Because CircuitPython drivers are designed to work on a bunch of different microcontrollers you won't get the fancy RP2040-architecture specific tweaks that you'll find in our library, but you will get access to Adafruit's mighty DisplayIO library which makes it super easy to display all sorts of different kinds of text, draw shapes and display images.
Getting Started with Interstate 75
Download CircuitPython for Interstate 75
Getting Started with CircuitPython
RGB LED Matrices with CircuitPython
Please note that some less-common varieties of 64x64 panels, like ones that use the FM6126A chip, are not currently supported in CircuitPython.
Connecting Breakouts
If your breakout has a QW/ST connector on board, you can plug it straight in with a JST-SH to JST-SH cable, or you can easily connect any of our I2C Breakout Garden breakouts with a JST-SH to JST-SH cable coupled with a Qw/ST to Breakout Garden adaptor.
You can find a list of which breakouts are currently compatible with our C++/MicroPython build in the most recent release notes.
