IO Board With PoE Feature for Raspberry Pi CM5, Mini Computer Kit
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 2052-1 |

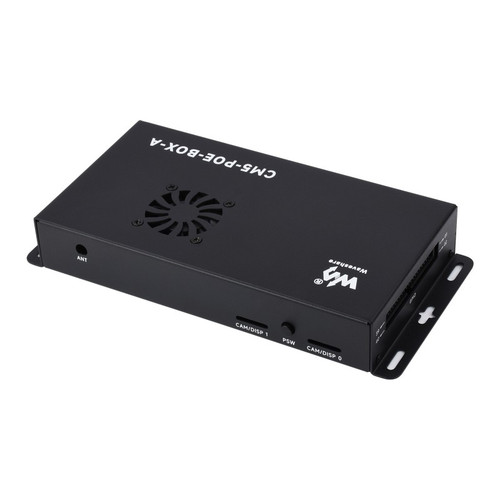

Waveshare 29687 - Raspberry Pi Compute Module 5 IO Board with PoE Feature, for all Variants of CM5 - CM5-POE-BOX-A (US)
Specifications
| CM5 socket | suitable for all variants of Compute Module 5 |
|---|---|
| Networking | Gigabit Ethernet RJ45 connector, integrates 802.3af/at-compliant PoE circuit (5V/5A) |
| Connector | Raspberry Pi 40PIN GPIO header |
| USB | USB 3.2 Gen1 × 2 |
| USB 2.0 × 2 | |
| MIPI | 4-lane MIPI interface × 2 (22pin 0.5mm FPC connector) |
| Video | HDMI port × 2, supports 4K output |
| RTC | CR / ML2032 battery holder |
| Storage | TF card slot for Compute Module 5 Lite (without eMMC) variants |
| Fan connector | 5V, JST-SH PWM 4PIN connector |
| NVMe | PCIe Gen2/3 × 1 |
| Power input | 5V 5A |
| Dimensions | the base board: 160 × 90 (mm) |
| with metal case: 200.5 × 97.5 × 31.0 (mm) |
Connecting with Compute Module 5
standard CM5 socket and Raspberry Pi 40PIN GPIO header suitable for all variants of Compute Module 5.
Precise cut-out with clear label
each cut-out is completely aligned with the connector.
Package Content
- Metal case (top and bottom) x1
- CM5-PoE-BASE-A x1
- CM4-IO-BOARD-CASE-A-ADAPTER x1
- CM5-FAN-4010-5V x1
- OPTIONS 27W USB-C power supply x1
- Screwdriver x1
- Antenna connector rubber plug x1
- Button cap x1
- Screws pack x1
