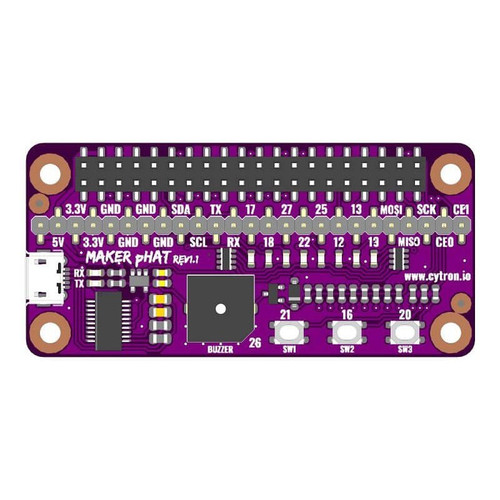

Maker pHAT: Simplifying Raspberry Pi for Education

Features

• Raspberry Pi Zero size, stack perfectly on to Pi Zero Series of SBC (Single Board Computer).
• Compatible with standard size Raspberry Pi 3B/3B+/4B1GB/4B2GB/4B4GB, medium size Raspberry Pi 3A+ and smaller size Raspberry Pi Zero/W/WH.
• Standard Raspberry Pi GPIO footprint.
• LED array for selected GPIO pins (GPIO 17, 18, 27, 22, 25, 12, 13, 19).
• 3x onboard programmable push buttons (GPIO 21, 19 and 20, need to configure as input pull up).
• Onboard active buzzer (GPIO 26).
• Proper label for all GPIOs, including SPI, UART, I2C, 5V, 3.3V, and GND.
• Utilize USB Micro-B socket for 5V input and USB to UART communication.
• USB serial facilitated by the CH340, Rev1.10 uses FT231X as the USB to UART
• Input voltage: USB 5V, from the computer, power bank or standard USB adapter.
• PURPLE PCB!

Includes

1. 1 x Maker pHAT
2. 1 x 2x20 Stacking Header

Resources

• User's Manual
• Schematic Rev1.00 (pdf)
• Schematic Rev1.10 (pdf)
• Sample Python Code (Github)
• CH340 Driver (Windows)
• CH340 Driver (MacOS)
• CH340 Driver (Linux) - Pre-installed
• FT231X Driver on Rev1.10 (Windows, Linux, and macOS)
• PuTTY - For serial terminal
• Raspberry Pi: Mengawal LED di Maker pHAT
