Maxbotix Ultrasonic Rangefinder - LV-EZ4 - LV-EZ4

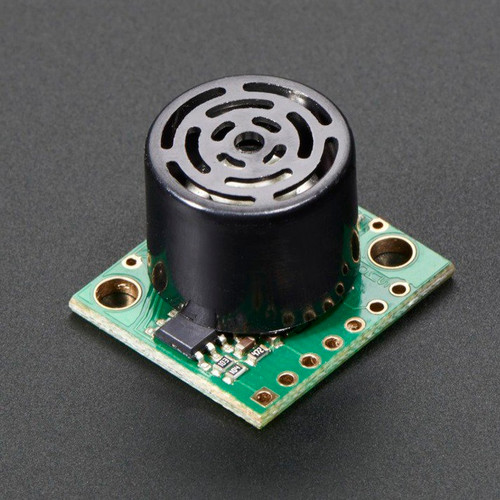

LV-EZ4 Maxbotix Ultrasonic Rangefinder provides very short to long-range detection and ranging, in an incredibly small package. It can detect objects from 0-inches to 254-inches (6.45-meters) and provides sonar range information from 6-inches out to 254-inches with 1-inch resolution. (Objects from 0 inches to 6-inches range as 6-inches.) The interface output formats included are pulse width output (PWM), analog voltage output (Vcc/512 volts per inch), and serial digital output (9600 baud).

A good sensor for when a Sharp IR distance sensor won't cut it.

LV-EZ4 Data Sheet / Product Information Guide is available here.

Technical Details

Dimensions:

• Length: 15.52mm/0.61in
• Width: 22.36mm/0.88in
• Height: 20.0mm/0.79in
• Weight: 4.23g/0.15oz
