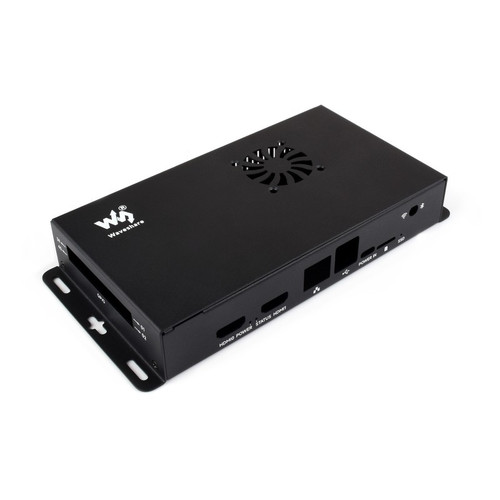

Metal Case for Raspberry Pi Compute Module 5 IO Board, Cooling Fan

Waveshare 30314 - Metal Case Designed For Raspberry Pi official Compute Module 5 IO Board, Comes With Cooling Fan.

Precise cut-out with clear label

Each cut-out is completely aligned with the connector.

Package Content

1. Metal case (top and bottom) x1
2. 40PIN GPIO adapter x1
3. CM5-FAN-4010-5V x1
4. Antenna connector rubber plug x1
5. Button cap x1
6. Screwdriver x1
7. Screws pack x1

How to Install

Prepare the accessories as shown above

1. Connect the ④ GPIO adapter board to the ② Compute Module 5 IO Board first, and fix them with ⑥ standoff and screws.

2. Fix the ② Compute Module 5 IO Board and the ③ bottom cover via ⑧ screws.

3. Use the ⑨ screws and nuts to install the ⑤ cooling fan to the top cover of the case, then connect the 4PIN fan header to the fan connector of the CM5 IO Board as above.

4. Fix the top cover and bottom cover via ⑦ screws.

Outline dimensions
