NAS All-In-One Mini-Computer for Raspberry Pi CM4
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 1236-2 |

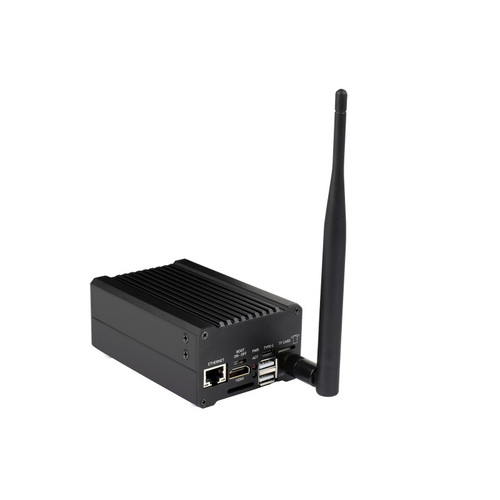

Waveshare 23771 - Network Attached Storage(NAS) All-In-One Mini-Computer For Raspberry Pi Compute Module 4, Personal Network Storage Server, Optional For CM4 Module - CM4-NAS-Double-Deck
Features
- All-in-one Mini-Computer, mainly designed for home or small home office, but not limited to the above applications
- Out of the box, no expert knowledge of networking and storage systems required
- Built-in 2x SATA slots for installing 2.5-inch Solid State Drives
- 2-inch SPI LCD screen for real-time monitoring the working status of CM4: CPU, RAM, system disk usage, network speed and temperature, etc.
- Easy to use, convenient to online access the documents, videos, and music at any time
Specifications
| Processor * | Broadcom BCM2711 Quad-Core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
|---|---|
| RAM * | CM4104008: 4GB CM4102032: 2GB |
| EMMC FLASH * | CM4104008: 8GB CM4102032: 32GB |
| Connectivity | Dual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac wireless WiFi, Bluetooth 5.0, BLE with onboard and external antenna options * |
| Gigabit Ethernet RJ45 connector | |
| 2 x USB 2.0 ports | |
| 2 x SATA slots (2.5inch SATA) | |
| TF card slot for Compute Module 4 Lite (without eMMC) variants | |
| HDMI × 1, supports 4K 30fps output | |
| Operating voltage | 5V DC |
Includes
- CM4-NAS-Double-Deck x1
- 5V 3A Type C power supply x1
- Screwdriver x1
Dimensions
