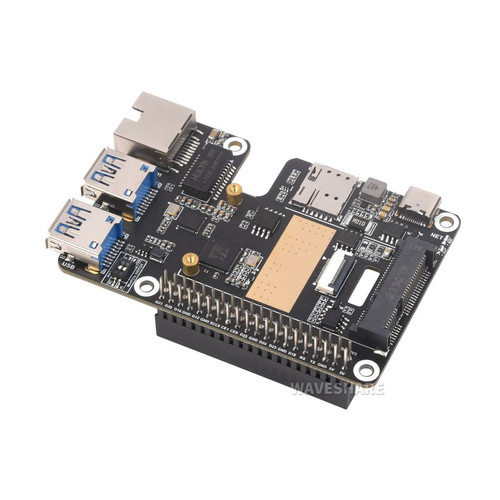

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, Compatible w/ MiniPCIe interface 4G Module

Waveshare 28142 - PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, Supports MiniPCIe interface 4G Module, High-speed Networking, Multiple OS support, Raspberry Pi 5 HAT - PCIe TO MiniPCIe GbE USB3.2 HAT+

What's on Board

1. RTL8153B
   USB to Gigabit ETH
2. VL805
   PCIe to USB 3.2 Gen1 HUB chip
3. INA219
   Power monitoring chip
4. EEPROM
   for saving HAT ID and product information
5. Raspberry Pi GPIO header
   for connecting Raspberry Pi 5
6. MiniPCIe slot
   for connecting the 4G module with MIniPCIe interface
7. 16PIN PCIe interface
   for connecting to the PCIe interface of Raspberry Pi 5
8. Type-C interface
   for 4G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
9. Nano SIM card slot
   for installing Nano-SIM card
10. Gigabit Ethernet port
    up to 1000Mbps data rate, compatible with 100Mbps
11. USB 3.2 Gen1 expanded ports
    USB1~USB2
12. DIP switchs
    for switching to use GPIO D6 pin to control power ON/OFF of the module and switching the module USB signal output direction
13. NET indicator
    Module Network status indicator
14. PWR indicator
    Power indicator

Pinout definition

Outline Dimensions

Package Content

1. PCIe TO MiniPCIe GbE USB3.2 HAT+ x1
2. 16P-Cable-40mm cable x1
3. Network cable ~1.5m x1
4. Screws pack x1
