PiRelay - Relay Shield for Raspberry Pi
SKU: | 1168 |
PiRelay V2 is developed by SB Components with the potential to control 4 appliances and loads up to 250V AC/ 7 A, 30V DC/ 10A to provide a way to control the high voltage/current devices. It helps the user to enhance the intelligence of the appliances. It comprises an “Optocoupler” that allows the circuit to transmit an electrical signal between two isolated circuits through light energy. Optocoupler helps the user to prevent the high voltages in one part of the circuit from affecting the other part of the circuit which provides safety to the system. It provides a better connection of PiRelay V2 with the Raspberry Pi that gets enabled from the standardized shield form factor. One can enable the IoT technology of their home appliances using PiRelay V2 that will make their life efficient.

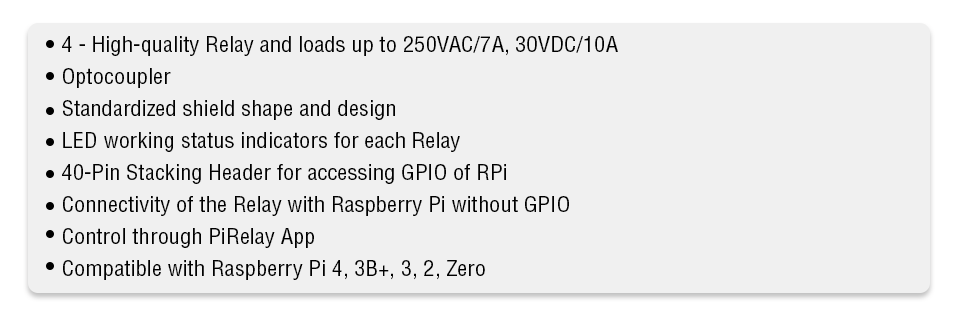

Features
Specifications
Applications

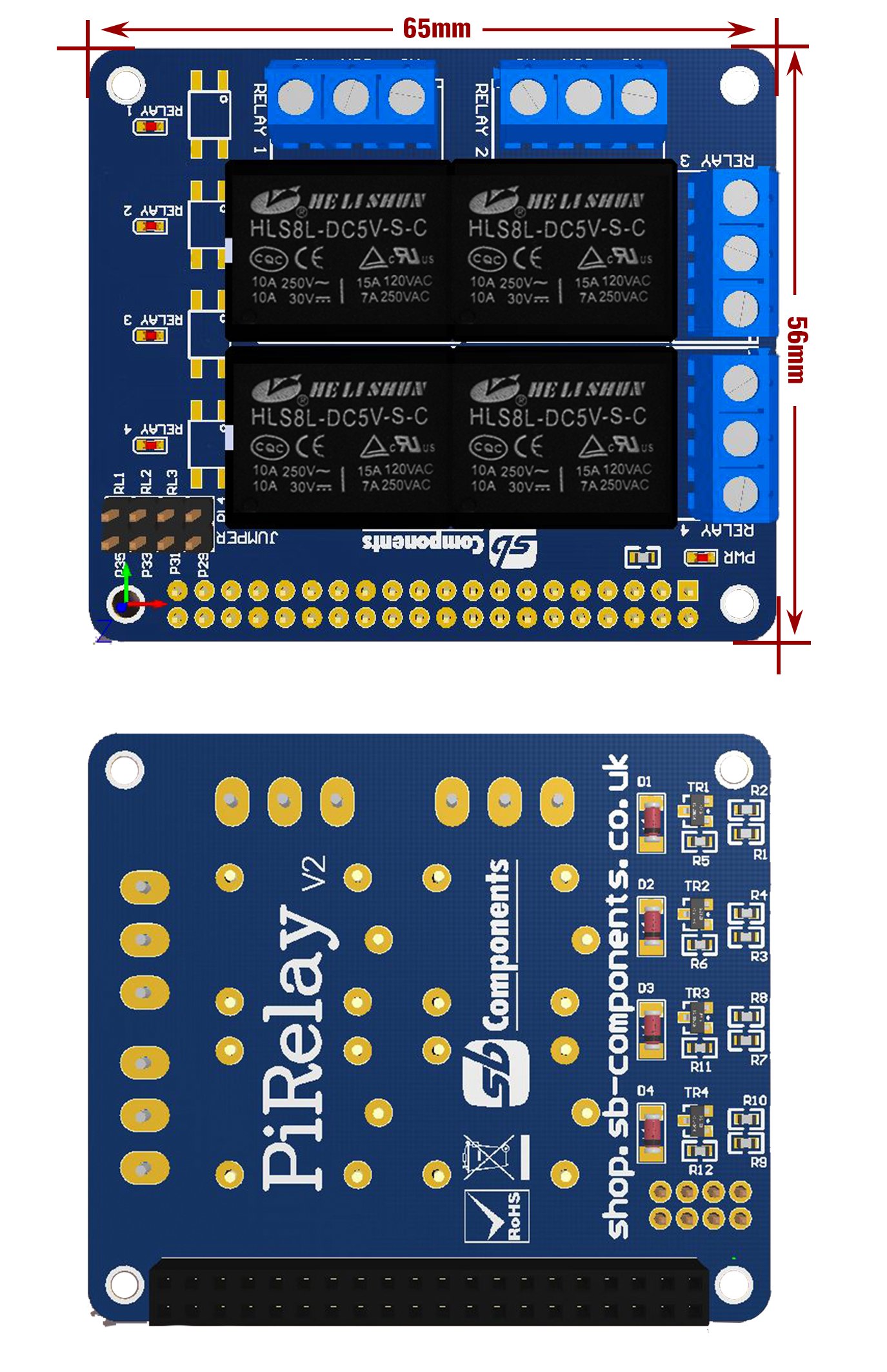

Hardware

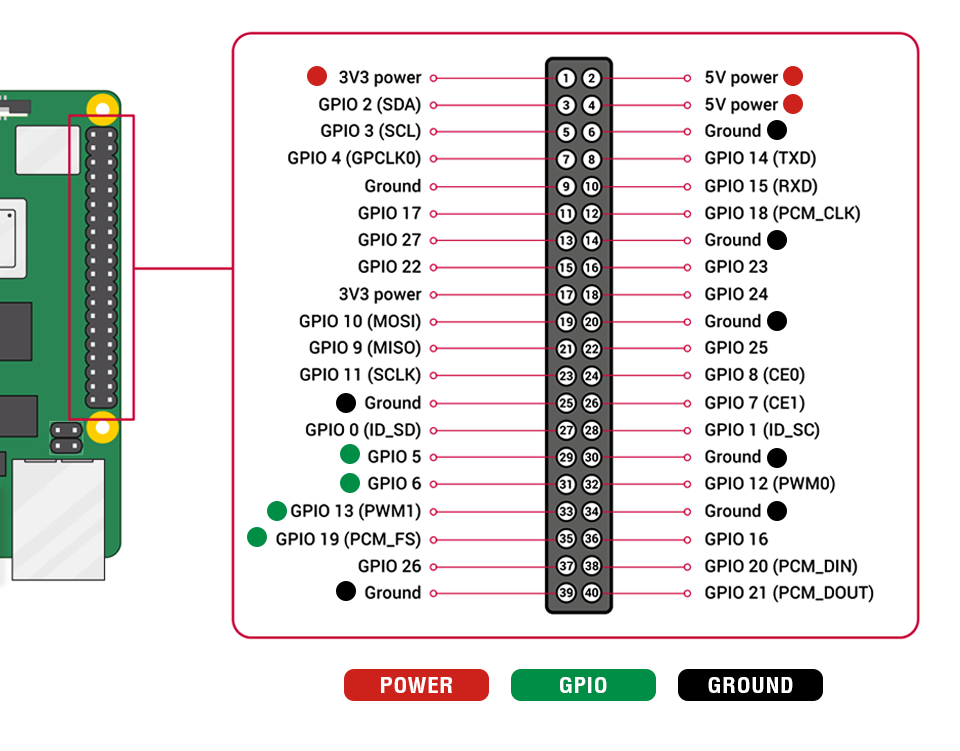

Pinout Definition
Included
- 1 x PiRelay
Note: Raspberry Pi not included
Resources
PiRelay related content
- Introduction of Relays for Raspberry Pi

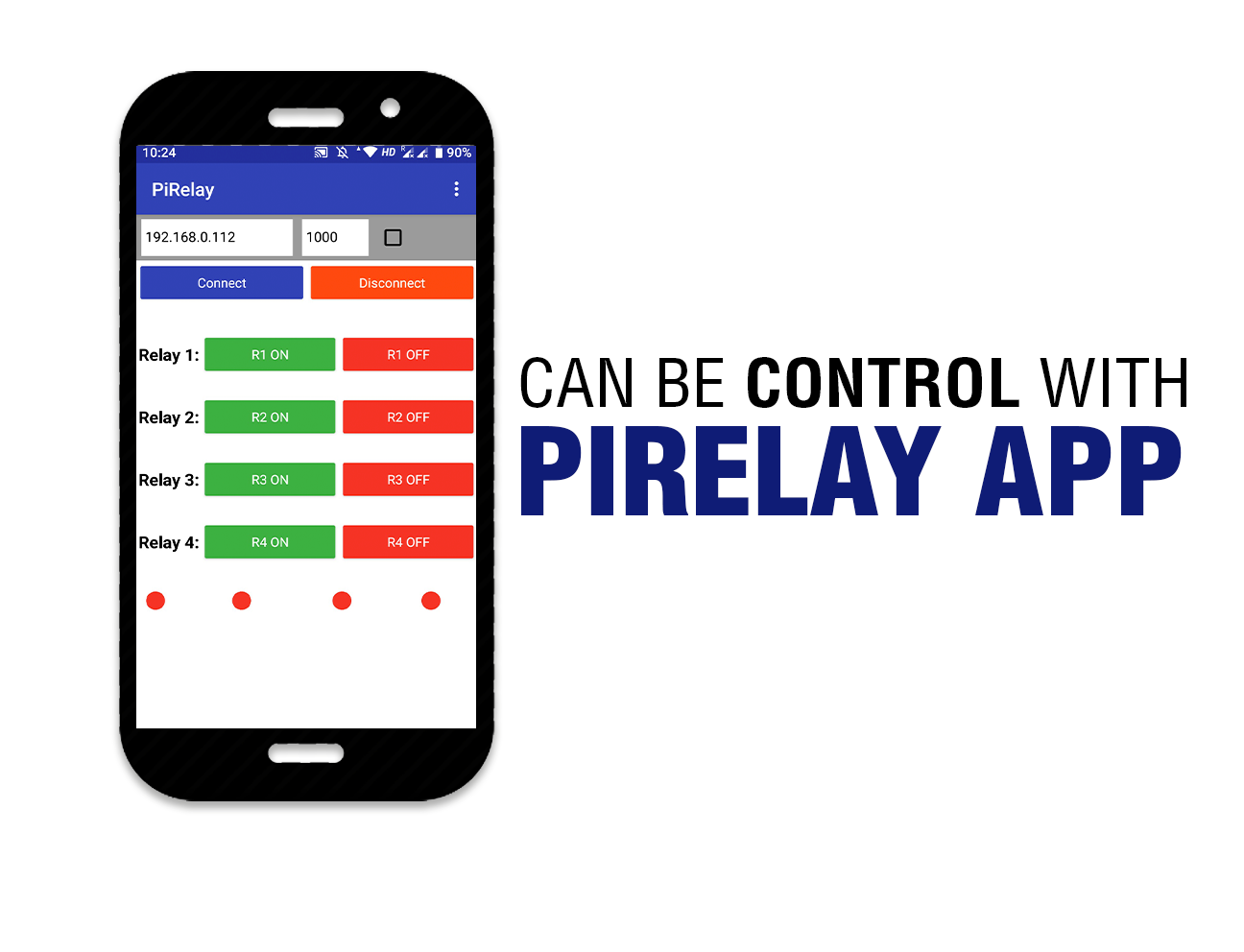

- PiRelay Controlling using Android App
- Voice Control Home Automation using PiRelay
- Control your Appliances using Telegram and PiRelay
- Smart Way To Control Your Home Appliances Using Raspberry Pi & PiRelay v2
- Control your Home Appliances with GUI on Raspberry Pi
