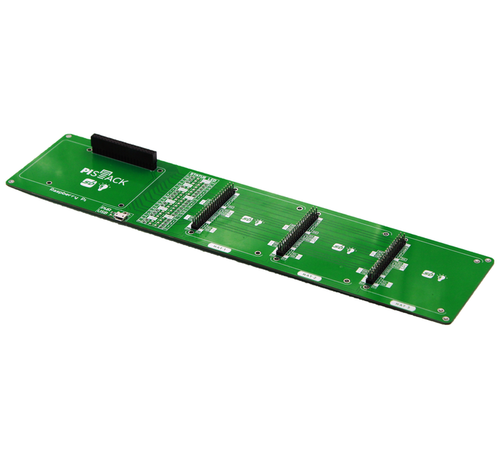

PiStack - Stack HAT for Raspberry Pi, Stack up to 3 HAT's

PiStack is an I/O expansion kit designed for Raspberry Pi, which provides 3 sets of 2x20 pin headers, which means a handy way to "stack" multi different HATs together, and use them as a specific combination/project.

Features

• Standard Raspberry Pi connectivity, directly pluggable OR through the ribbon cable.
• 3 sets of 2x20 pin headers, connect multi HATs together.
• USB external power port, provides enough power supply for multi HATs.
• Clear and descriptive pin labels for easy use.
• Reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts.

Whats's on Board

Specifications

• Dimensions: 33 x 8 x 1.5 cm (Approx.)

Content

• 1 x PiStack

Resources

View Schematic, Details and Compatible Boards.

Find the PiStack Github Repository Here
