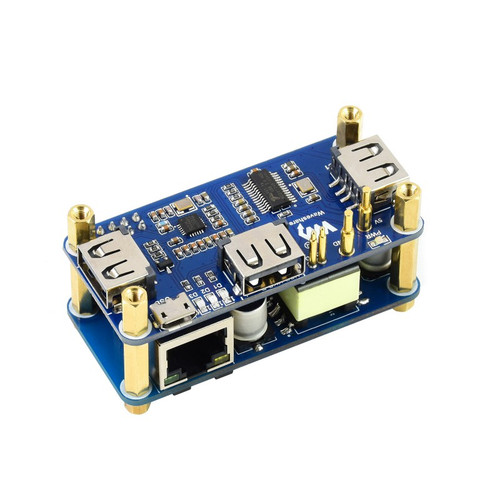

Waveshare 19635 - PoE Ethernet / USB HUB HAT For Raspberry Pi Zero, 3x USB 2.0 Ports, 802.3af-Compliant - PoE/ETH/USB HUB HAT
Suitable For Raspberry Pi Zero / Zero 2W / Zero W / Zero WH, 802.3af-Compliant.
Features
The PoE/ETH/USB HUB HAT is a PoE (Power over Ethernet) USB HUB HAT designed for Raspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with 3x extended USB ports.
- Designed for Raspberry Pi Zero, compatible with Zero series boards
- Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
- PoE (Power over Ethernet) feature, 802.3af-compliant
- Fully isolated SMPS (Switch Mode Power Supply)
- 3x extended USB ports, compatible with USB 2.0 / 1.1
Specifications
PoE power input | 37V ~ 57V DC in |
---|---|
Power output | 5V 2.5A DC out |
Network standard | IEEE 802.3af-compliant PoE |
Dimensions | 23.10 × 65.00 mm |
Content
- PoE/ETH/USB HUB HAT x1
- USB HUB Board x1
- Screws pack x1
- Screwdriver x1
Weight: 0.063 kg
Outline Dimensions
Resources
- Wiki: PoE/ETH/USB_HUB_HAT
