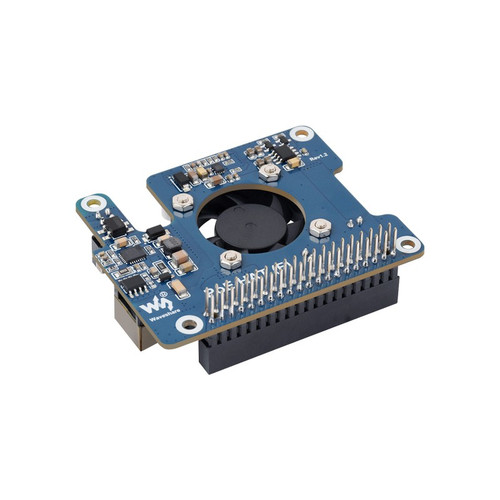

Power Over Ethernet HAT (F) For Raspberry Pi 5, Cooling Fan, 802.3af/at
Brand | Waveshare |
SKU: | 1646-1 |
![](https://www.pishop.ca/product_images/uploaded_images/approved-reseller-logo-rpf1.png)
Waveshare 26399 - Power Over Ethernet HAT (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/At Network Standard
Features
The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5
- PoE (Power Over Ethernet) capability,IEEE 802.3af/at-compliant
- Fully isolated switched-mode power supply (SMPS)
- Onboard high speed active cooling fan, with metal heatsink, better heat dissipation
Specifications
PoE power input | 37V ~ 57V DC in |
---|---|
Power output | GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX) |
Dimensions | 56.5 × 70.0mm |
Network standard | IEEE 802.3af/at PoE |
Includes
- PoE HAT (F) x1
- Metal heatsink x1
- Thermal tape (3PCS) x1
Weight: 0.056 kg
How To Install
Attach The Thermal Tapes First, Then Install Metal Heatsink And Fix The PoE HAT
