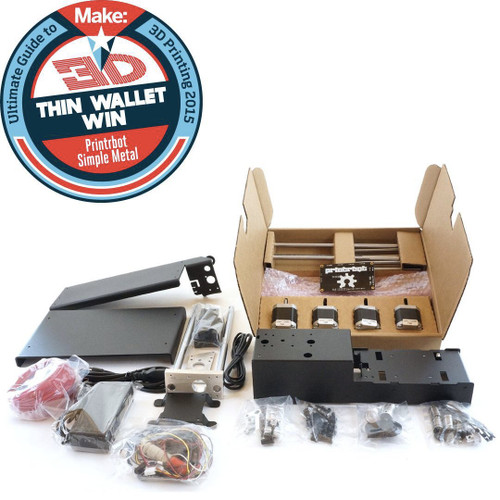

Printrbot - Simple Metal Kit

This product is no longer available. Please consider other/alternative Printrbot products.

Printrbot Simple V2 3D Printer is currently on end of year sale with 50% off!

This product is not eligible for free shipping. Normal shipping rates apply: ON/QC - $11, other provinces - $12 (flat fee for the whole order).

The all metal construction combined with a GT2 belt pulley system produces a 3D print that rivals those of other manufacturers which cost thousands more!

Technical Specifications:

• Model: 1403
• Build Volume: 6" x 6" x 6" / 150mm x 150mm x 150mm / 216 cubic inches
• Print Resolution: 100 Microns
• Print Speed: 80mm/sec max recommended
• Filament: 1.75mm PLA (sample included)
• Extruder: Alu Extruder (direct drive) with 1.75mm Ubis Hot End with 0.4mm nozzle
• Auto Leveling: Auto-Leveling Probe works with software to calibrate Z axis height (see video)
• Print Bed: Not heated
• Construction: Powder coated steel and aluminum body with 8mm and 12mm diameter linear shaft
• Belt: GT2
• Pulleys: 20 tooth, dual flange GT2 aluminum
• Electronics: Printrbot Rev F Printrboard with micro-USB connection (cable included) and micro SD card slot for untethered printing
• Software: Printrbot does not provide software, but recommends Cura and/or Repetier.  Both are available for free download.
• Power Requirements: 12V (6 amp) laptop power supply (included)
• Motors: NEMA 17 stepper
• Overall Footprint*: 18" x 17" x 13" (L x W x H)

*Overall Footprint is the space needed to operate the full range of motion for the machine - X, Y, and Z axes travel.

*For more on getting started with your Simple Metal, click here

Requirements:

• Assembly Required: Yes
