Raspberry Pi PoE+ HAT for Pi 3B+ & Pi 4B

This PoE+ HAT is NOT compatible with the newest Raspberry Pi 5 boards.

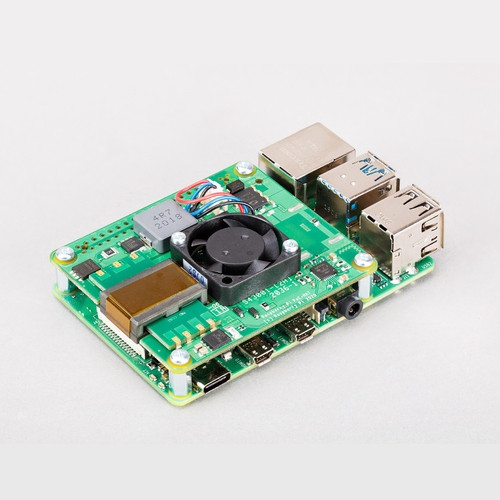

Use this HAT to add PoE+ capability to your Raspberry Pi's Ethernet port. Compatible with Raspberry Pi 4 and Raspberry Pi 3B+. Power-sourcing equipment is required.

Specification

• Standard: IEEE 802.3at-2003 PoE
• Input voltage: 37-57 V DC, Class 4 device
• Output power: 5 V DC/4 A
• Cooling: 25 mm × 25 mm brushless fan delivering 2.2 CFM for processor cooling
• Features: fully isolated switched-mode power supply; fan control
• Operating temperature: 0 °C to +50 °C

Documents

• Raspberry Pi PoE+ HAT product brief
