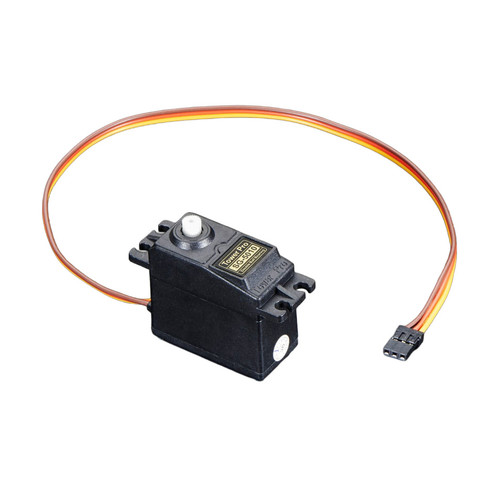

SG5010 TowerPro Torque Coreless Servo 180 Degrees

This high-torque standard servo can rotate approximately 180 degrees (90 in each direction). You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gear box. Comes with 3 horns, as shown. They aren't the highest quality servo (which is why they are less expensive) and so are not suggested for hobby planes. We now carry the Tower-Pro SG-5010 but unfortunately the image isnt updated.

To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (see here for an example sketch). Position "0" (1.5ms pulse) is middle, "90" (~2ms pulse) is all the way to the right, "-90" (~1ms pulse) is all the way to the left.

•  Product type: SG5010 Servo
• Gear Type: double Ball Bearing
• Reaction speed:0.13-0.17sec /60 degrees
•  Stall Torque (4.8v): 8kg/cm, (6.0v): 11kg/cm
• Weight: 39g
• Operating temperature: -30 ~ +60 degree
• Plug type: JR, FUTABA and other general
• Rotation angle:180 degrees
• Working current: 100mA
• Using voltage:3.5v-8.4Volt
•  Structural material: Metal gear, pull 3kg
