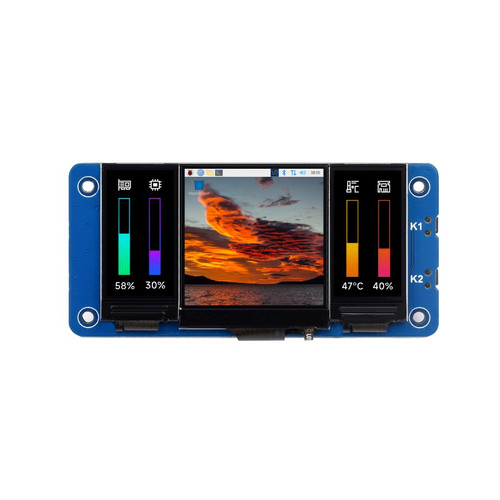

Triple LCD HAT For Raspberry Pi, 1.3inch IPS LCD and Dual 0.96inch IPS LCD

Waveshare 25586 - Triple LCD HAT For Raspberry Pi, Onboard 1.3inch IPS LCD Main Screen And Dual 0.96inch IPS LCD Secondary Screens, With 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards

Features

• Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
• 1.3inch IPS LCD Main Screen with built in ST7789 driver chip, SPI interface communication, wide viewing angle, supports 65K color display, 240×240 resolution
• Dual 0.96inch LCD secondary screens with built in ST7735S driver chip, SPI interface communication, supports 65K color display, 160×80 resolution, can be used to display key informations, status indicator messages or small graphics
• Onboard 2x user-defined keys for extended applications
• Comes with online development resources and manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc.)

Includes

1. Zero LCD HAT (A) x1
2. Standoffs pack x1

Pin Definition

Outline Dimensions

Resources

• Wiki: www.waveshare.com/wiki/Zero_LCD_HAT_(A)
