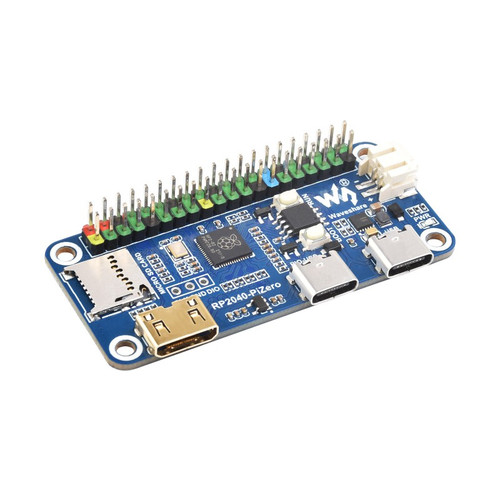

Waveshare RP2040-PiZero Development Board, 264KB SRAM, 16MB Onboard Flash Memory
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 3068 |
Waveshare 25506 - Waveshare RP2040-PiZero Development Board, Based On The Raspberry Pi RP2040 Dual-Core Processor, 264KB SRAM And 16MB Onboard Flash Memory, Compatible With Raspberry Pi 40PIN GPIO Header - RP2040-PiZero
Specifications
RP2040-PiZero is a high-performance and cost-effective microcontroller board designed by Waveshare, onboard DVI interface, TF card slot and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, easy to develop and integrate into the products.
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 16MB of onboard Flash memory
- Onboard DVI interface can drive most HDMI screens (DVI compatibility required)
- Supports using as a USB host or slave via onboard PIO-USB port
- Onboard TF card slot for reading and writing TF card
- Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios
- USB 1.1 with device and host support
- Drag-and-drop programming using mass storage over USB
- Low-power sleep and dormant modes
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Includes
- RP2040-PiZero x1
Weight: 0.012 kg
What's On Board
|
|
Outline Dimensions
