Waveshare RP2350A USB Mini Development Board, RP2350A,150MHz

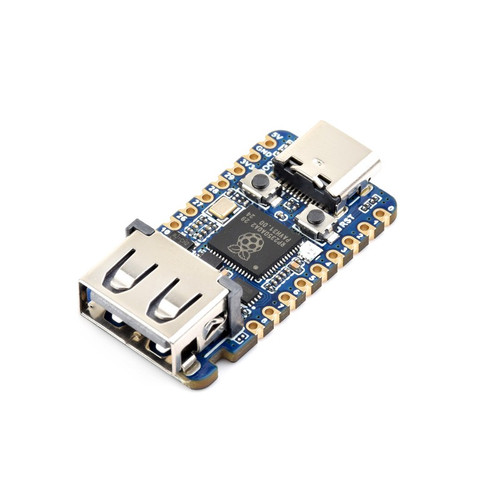

Waveshare 30274 - RP2350A USB Mini Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller, 150MHz Operating Frequency - RP2350-USB-A

specifications

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB of SRAM, and 2MB of onboard Flash memory
• Type-C connector, keeps it up to date, easier to use
• Castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Onboard 1x USB Type A expansion port via PIO, compatible with USB 2.0/1.1 transmission
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• Adapting 15 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 14 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

15 × multi-function GPIO pins

Configurable pin function, allows flexible development and integration

What's On Board

1. USB 2.0 Type A connector
   Supports USB host or device via PIO
2. BOOT button
   Press it when resetting to enter download mode
3. RESET button
4. RP2350A
   Dual-core and dual-architecture design, up to 150 MHz operating frequency
5. WS2812
   cool RGB LED
6. RT9013-33GB
   500mA LDO regulator, low noise, ultra-fast response
7. W25Q16JVUXIQ
   2MB NOR-Flash
8. USB Type-C connector
   for programming, USB 1.1 with device and host support

outline dimensions

Wiki: www.waveshare.com/wiki/RP2350-USB-A
